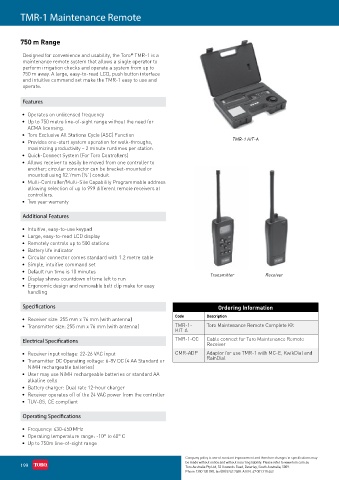

Page 213 - Toro Irrigation Product Catalogue August 2020

TMR-1 Maintenance Remote

750 m Range

Designed for convenience and usability, the Toro TMR-1 is a
®
maintenance remote system that allows a single operator to
perform irrigation checks and operate a system from up to
750 m away. A large, easy-to-read LCD, push button interface
and intuitive command set make the TMR-1 easy to use and
operate.

Features
• Operates on unlicensed frequency
• Up to 750 metre line-of-sight range without the need for
ACMA licensing.
• Toro Exclusive All Stations Cycle (ASC) Function
• Provides one-start system operation for walk-throughs, TMR-1 KIT-A
maximizing productivity – 2 minute runtimes per station.
• Quick-Connect System (For Toro Controllers)
• Allows receiver to easily be moved from one controller to
another; circular connector can be bracket-mounted or
mounted using 12.7mm (½”) conduit.
• Multi-Controller/Multi-Site Capability Programmable address
allowing selection of up to 999 different remote receivers at
controllers.
• Two year warranty

Additional Features

• Intuitive, easy-to-use keypad
• Large, easy-to-read LCD display
• Remotely controls up to 500 stations
• Battery life indicator
• Circular connector comes standard with 1.2 metre cable
• Simple, intuitive command set
• Default run time is 10 minutes Transmitter Receiver
• Display shows countdown of time left to run
• Ergonomic design and removable belt clip make for easy
handling

Specifications Ordering Information

Code Description
• Receiver size: 255 mm x 76 mm (with antenna)
• Transmitter size: 255 mm x 76 mm (with antenna) TMR-1- Toro Maintenance Remote Complete Kit
KIT-A
Electrical Specifications TMR-1-CC Cable connect for Toro Maintenance Remote
Receiver
• Receiver input voltage: 22-26 VAC input CMR-ADP Adaptor for use TMR-1 with MC-E, KwikDial and
• Transmitter DC Operating voltage: 6-8V DC (4 AA Standard or RainDial
NiMH rechargeable batteries)
• User may use NiMH rechargeable batteries or standard AA
alkaline cells
• Battery charger: Dual rate 12-hour charger
• Receiver operates off of the 24 VAC power from the controller
• TUV-GS, CE compliant

Operating Specifications

• Frequency: 430-450 MHz
• Operating temperature range: -10° to 60° C
• Up to 750m line-of-sight range

Company policy is one of constant improvement and therefore changes in specifications may
199 be made without notice and without incurring liability. Please refer to www.toro.com.au
