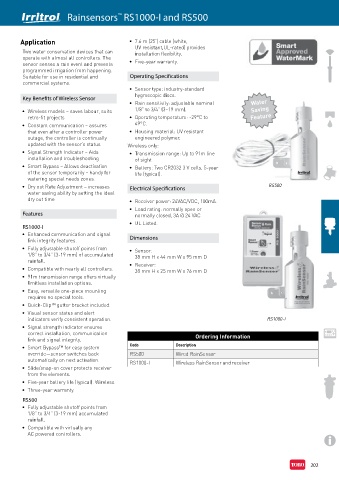

Page 216 - Toro Irrigation Product Catalogue August 2020

R Rainsensors RS1000-I and RS500
™

Application • 7.6 m (25’) cable (white,
UV resistant,UL-rated) provides
Two water conservation devices that can installation flexibility.
operate with almost all controllers. The
sensor senses a rain event and prevents • Five-year warranty.
programmed irrigation from happening.
Suitable for use in residential and Operating Specifications
commercial systems.
• Sensor type: industry-standard
hygroscopic discs.
Key Benefits of Wireless Sensor
• Rain sensitivity: adjustable nominal Water
• Wireless models – saves labour, suits 1/8” to 3/4” (3–19 mm). Saving
retro-fit projects • Operating temperature: -29°C to Feature
• Constant communication – assures 49°C.
that even after a controller power • Housing material: UV resistant
outage, the controller is continually engineered polymer.
updated with the sensor’s status Wireless only:
• Signal Strength Indicator – Aids • Transmission range: Up to 91m line
installation and troubleshooting of sight
• Smart Bypass – Allows deactivation • Battery: Two CR2032 3 V cells, 5-year
of the sensor temporarily – handy for life (typical).
watering special needs zones.
• Dry out Rate Adjustment – increases Electrical Specifications RS500
water saving ability by setting the ideal
dry out time • Receiver power: 24VAC/VDC, 100mA.
• Load rating: normally open or
Features normally closed, 3A @ 24 VAC
• UL Listed.
RS1000-I
• Enhanced communication and signal
link integrity features. Dimensions
• Fully adjustable shutoff points from • Sensor:
1/8” to 3/4” (3-19 mm) of accumulated 38 mm H x 44 mm W x 95 mm D
rainfall.
• Compatible with nearly all controllers. • Receiver:
38 mm H x 25 mm W x 76 mm D
• 91m transmission range offers virtually
limitless installation options.
• Easy, versatile one-piece mounting
requires no special tools.
• Quick-Clip™ gutter bracket included.
• Visual sensor status and alert
indicators verify consistent operation. RS1000-I
• Signal strength indicator ensures
correct installation, communication
link and signal integrity. Ordering Information
Code Description
• Smart Bypass™ for easy system
override—sensor switches back RS500 Wired RainSensor
automatically on next activation.
RS1000-I Wireless RainSensor and receiver
• Slide/snap-on cover protects receiver
from the elements.
• Five-year battery life (typical). Wireless.
• Three-year warranty.
RS500
• Fully adjustable shutoff points from
1/8” to 3/4” (3-19 mm) accumulated
rainfall.
• Compatible with virtually any
AC powered controllers.

202
