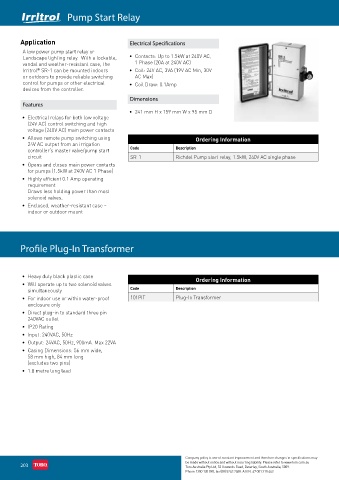

Page 217 - Toro Irrigation Product Catalogue August 2020

R Pump Start Relay

Application Electrical Specifications

A low power pump start relay or
Landscape lighting relay. With a lockable, • Contacts: Up to 1.5kW at 240V AC,
vandal and weather-resistant case, the 1 Phase (20A at 240V AC)
Irritrol SR-1 can be mounted indoors • Coil: 24V AC, 3VA (19V AC Min, 30V
®
or outdoors to provide reliable switching AC Max)
control for pumps or other electrical • Coil Draw: 0.1Amp
devices from the controller.
Dimensions
Features
• 241 mm H x 159 mm W x 95 mm D
• Electrical relays for both low voltage
(24V AC) control switching and high
voltage (240V AC) main power contacts
• Allows remote pump switching using Ordering Information
24V AC output from an irrigation
controller’s master valve/pump start Code Description
circuit SR-1 Richdel Pump start relay, 1.5kW, 240V AC single phase
• Opens and closes main power contacts
for pumps (1.5kW at 240V AC 1 Phase)
• Highly efficient 0.1 Amp operating
requirement
Draws less holding power than most
solenoid valves.
• Enclosed, weather-resistant case –
indoor or outdoor mount

Profile Plug-In Transformer

• Heavy duty black plastic case Ordering Information
• Will operate up to two solenoid valves
simultaneously Code Description
• For indoor use or within water-proof 101PIT Plug-In Transformer
enclosure only
• Direct plug-in to standard three pin
240VAC outlet
• IP20 Rating
• Input: 240VAC, 50Hz
• Output: 24VAC, 50Hz, 900mA. Max 22VA
• Casing Dimensions: 56 mm wide,
58 mm high, 84 mm long
(excludes two pins)
• 1.8 metre long lead
