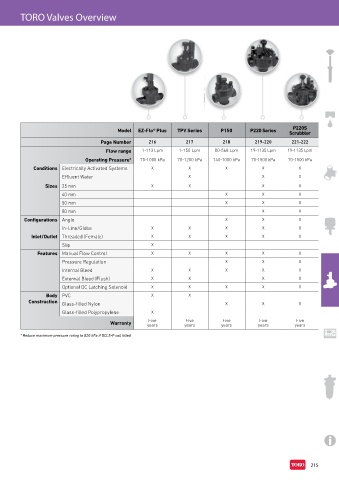

Page 231 - Toro Irrigation Product Catalogue August 2020

TORO Valves Overview

P220S
Model EZ-Flo® Plus TPV Series P150 P220 Series Scrubbler
Page Number 216 217 218 219-220 221-222
Flow range 1-113 Lpm 1-150 Lpm 80-568 Lpm 19-1135 Lpm 19-1135 Lpm
Operating Pressure* 70-1000 kPa 70-1200 kPa 140-1000 kPa 70-1500 kPa 70-1500 kPa
Conditions Electrically Activated Systems X X X X X
Effluent Water X X X
Sizes 25 mm X X X X
40 mm X X X
50 mm X X X
80 mm X X
Configurations Angle X X X
In-Line/Globe X X X X X
Inlet/Outlet Threaded (Female) X X X X X
Slip X
Features Manual Flow Control X X X X X
Pressure Regulation X X X
Internal Bleed X X X X X
External Bleed (Flush) X X X X
Optional DC Latching Solenoid X X X X X
Body PVC X X
Construction Glass-filled Nylon X X X
Glass-filled Polypropylene X
Five
Five
Five
Five
Five
Warranty years years years years years
* Reduce maximum pressure rating to 820 kPa if DCLS-P coil fitted.

215
