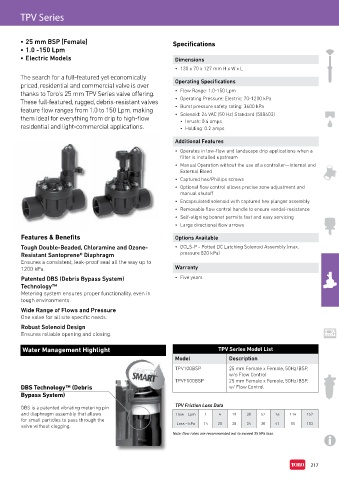

Page 233 - Toro Irrigation Product Catalogue August 2020

TPV Series

• 25 mm BSP [Female] Specifications
• 1.0 -150 Lpm
• Electric Models Dimensions
• 130 x 70 x 127 mm H x W x L
The search for a full-featured yet economically Operating Specifications
priced, residential and commercial valve is over
thanks to Toro’s 25 mm TPV Series valve offering. • Flow Range: 1.0-150 Lpm
These full-featured, rugged, debris-resistant valves • Operating Pressure: Electric; 70-1200 kPa
• Burst pressure safety rating: 3600 kPa
feature flow ranges from 1.0 to 150 Lpm, making • Solenoid: 24 VAC (50 Hz) Standard (588403)
them ideal for everything from drip to high-flow • Inrush: 0.4 amps
residential and light-commercial applications. • Holding: 0.2 amps

Additional Features
• Operates in low-flow and landscape drip applications when a
filter is installed upstream
• Manual Operation without the use of a controller—Internal and
External Bleed
• Captured hex/Phillips screws
• Optional flow control allows precise zone adjustment and
manual shutoff
• Encapsulated solenoid with captured hex plunger assembly
• Removable flow control handle to ensure vandal-resistance
• Self-aligning bonnet permits fast and easy servicing
• Large directional flow arrows
Features & Benefits Options Available
Tough Double-Beaded, Chloramine and Ozone- • DCLS-P - Potted DC Latching Solenoid Assembly (max.
Resistant Santoprene® Diaphragm pressure 820 kPa)
Ensures a consistent, leak-proof seal all the way up to
1200 kPa. Warranty
Patented DBS (Debris Bypass System) • Five years
Technology™
Metering system ensures proper functionality, even in
tough environments.
Wide Range of Flows and Pressure
One valve for all site specific needs.
Robust Solenoid Design
Ensures reliable opening and closing.

Water Management Highlight TPV Series Model List
Model Description
TPV100BSP 25 mm Female x Female, 50Hz/BSP,
w/o Flow Control
TPVF100BSP 25 mm Female x Female, 50Hz/BSP,
DBS Technology™ (Debris w/ Flow Control
Bypass System)
TPV Friction Loss Data
DBS is a patented vibrating metering pin
and diaphragm assembly that allows Flow – Lpm 1 4 19 38 57 76 114 152
for small particles to pass through the
valve without clogging. Loss – kPa 14 20 28 34 38 41 55 103
Note: flow rates are recommended not to exceed 35 kPa loss.

217
