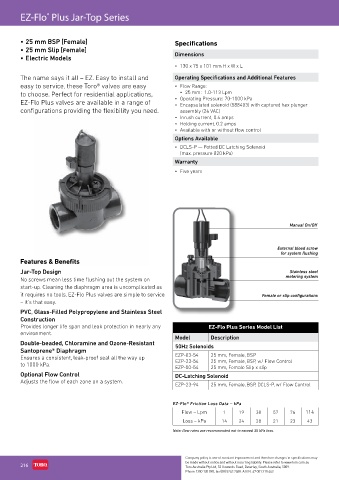

EZ-Flo Plus Jar-Top Series
®

• 25 mm BSP [Female] Specifications
• 25 mm Slip [Female]
• Electric Models Dimensions
• 130 x 75 x 101 mm H x W x L
The name says it all – EZ. Easy to install and Operating Specifications and Additional Features
easy to service, these Toro® valves are easy • Flow Range:
to choose. Perfect for residential applications, • 25 mm: 1.0-113 Lpm
EZ-Flo Plus valves are available in a range of • Operating Pressure: 70-1000 kPa
• Encapsulated solenoid (588403) with captured hex plunger
configurations providing the flexibility you need. assembly (24 VAC)
• Inrush current, 0.4 amps
• Holding current, 0.2 amps
• Available with or without flow control
Options Available
• DCLS-P — Potted DC Latching Solenoid
(max. pressure 820 kPa)
Warranty
• Five years

Manual On/Off

External bleed screw
for system flushing
Features & Benefits

Jar-Top Design Stainless steel
No screws mean less time flushing out the system on metering system
start-up. Cleaning the diaphragm area is uncomplicated as
it requires no tools. EZ-Flo Plus valves are simple to service Female or slip configurations
– it’s that easy.
PVC, Glass-Filled Polypropylene and Stainless Steel
Construction
Provides longer life span and leak protection in nearly any EZ-Flo Plus Series Model List
environment.
Model Description
Double-beaded, Chloramine and Ozone-Resistant 50Hz Solenoids
Santoprene® Diaphragm
Ensures a consistent, leak-proof seal all the way up EZP-03-54 25 mm, Female, BSP
EZP-23-54
25 mm, Female, BSP, w/ Flow Control
to 1000 kPa. EZP-00-54 25 mm, Female Slip x slip
Optional Flow Control DC-Latching Solenoid
Adjusts the flow of each zone on a system.
EZP-23-94 25 mm, Female, BSP, DCLS-P, w/ Flow Control

EZ-Flo® Friction Loss Data – kPa
Flow – Lpm 1 19 38 57 76 114
Loss – kPa 14 24 28 21 23 43
Note: flow rates are recommended not to exceed 35 kPa loss.

Company policy is one of constant improvement and therefore changes in specifications may
216 be made without notice and without incurring liability. Please refer to www.toro.com.au
Toro Australia Pty Ltd, 53 Howards Road, Beverley, South Australia, 5009.
Phone 1300 130 898, fax (08) 8243 2488. A.B.N. 47 001 310 443
