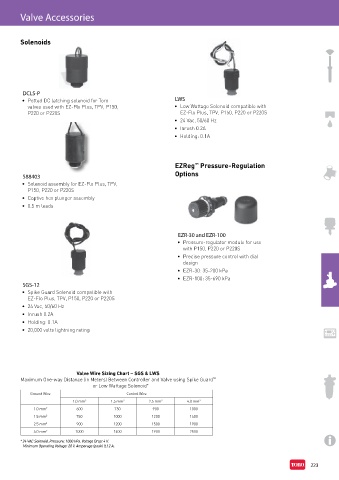

Page 239 - Toro Irrigation Product Catalogue August 2020

Valve Accessories

Solenoids

DCLS-P
• Potted DC latching solenoid for Toro LWS
valves used with EZ-Flo Plus, TPV, P150, • Low Wattage Solenoid compatible with
P220 or P220S EZ-Flo Plus, TPV, P150, P220 or P220S
• 24 Vac, 50/60 Hz
• Inrush 0.2A
• Holding: 0.1A

EZReg Pressure-Regulation
™
Options
588403
• Solenoid assembly for EZ-Flo Plus, TPV,
P150, P220 or P220S
• Captive hex plunger assembly
• 0.5 m leads

EZR-30 and EZR-100
• Pressure-regulator module for use
with P150, P220 or P220S
• Precise pressure control with dial
design
• EZR-30: 35-200 kPa
• EZR-100: 35-690 kPa
SGS-12
• Spike Guard Solenoid compatible with
EZ-Flo Plus, TPV, P150, P220 or P220S
• 24 Vac, 50/60 Hz
• Inrush 0.2A
• Holding: 0.1A
• 20,000 volts lightning rating

Valve Wire Sizing Chart – SGS & LWS
Maximum One-way Distance (in Meters) Between Controller and Valve using Spike Guard
™
or Low Wattage Solenoid*
Ground Wire Control Wire
1,0 mm 2 1,5 mm 2 2,5 mm 2 4,0 mm 2
1.0 mm 2 600 750 900 1000
1.5 mm 2 750 1000 1200 1400
2.5 mm 2 900 1200 1500 1900
4.0 mm 2 1000 1400 1900 2500
* 24 VAC Solenoid. Pressure: 1000 kPa. Voltage Drop: 4 V.
Minimum Operating Voltage: 20 V. Amperage (peak) 0,12 A.
