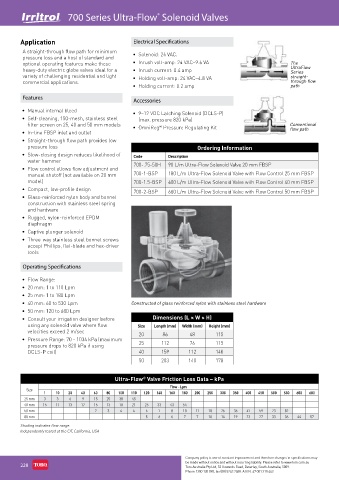

Page 244 - Toro Irrigation Product Catalogue August 2020

R 700 Series Ultra-Flow Solenoid Valves
®

Application Electrical Specifications

A straight-through flow path for minimum • Solenoid: 24 VAC.
pressure loss and a host of standard and
optional operating features make these • Inrush volt-amp: 24 VAC–9.6 VA The
heavy-duty electric globe valves ideal for a • Inrush current: 0.4 amp UltraFlow
Series
variety of challenging residential and light • Holding volt-amp: 24 VAC–4.8 VA straight-
commercial applications. through flow
• Holding current: 0.2 amp path
Features Accessories

• Manual internal bleed • 9–12 VDC Latching Solenoid (DCLS-P)
• Self-cleaning, 150-mesh, stainless steel (max. pressure 820 kPa)
filter screen on 25, 40 and 50 mm models • OmniReg Pressure Regulating Kit Conventional
®
• In-line FBSP inlet and outlet flow path
• Straight-through flow path provides low
pressure loss Ordering Information
• Slow-closing design reduces likelihood of Code Description
water hammer
• Flow control allows flow adjustment and 700-.75-50H 90 L/m Ultra-Flow Solenoid Valve 20 mm FBSP
manual shutoff (not available on 20 mm 700-1-BSP 180 L/m Ultra-Flow Solenoid Valve with Flow Control 25 mm FBSP
model) 700-1.5-BSP 400 L/m Ultra-Flow Solenoid Valve with Flow Control 40 mm FBSP
• Compact, low-profile design 700-2-BSP 680 L/m Ultra-Flow Solenoid Valve with Flow Control 50 mm FBSP
• Glass-reinforced nylon body and bonnet
construction with stainless steel spring
and hardware
• Rugged, nylon-reinforced EPDM
diaphragm
• Captive plunger solenoid
• Three-way stainless steel bonnet screws
accept Phillips, flat-blade and hex-driver
tools

Operating Specifications
• Flow Range:
• 20 mm: 1 to 110 Lpm
• 25 mm: 1 to 180 Lpm
• 40 mm: 60 to 530 Lpm Constructed of glass reinforced nylon with stainless steel hardware
• 50 mm: 120 to 680 Lpm
• Consult your irrigation designer before Dimensions (L × W × H)
using any solenoid valve where flow Size Length (mm) Width (mm) Height (mm)
velocities exceed 2 m/sec 20 86 48 115
• Pressure Range: 70 - 1034 kPa (maximum
pressure drops to 820 kPa if using 25 112 76 115
DCLS-P coil) 40 159 112 140
50 203 140 178

Ultra-Flow Valve Friction Loss Data – kPa
®
Flow - Lpm
Size
1 10 20 40 60 80 100 110 120 140 160 180 200 250 300 350 400 450 500 530 600 680
25 mm 3 3 6 9 15 25 38 45
40 mm 15 11 13 17 15 13 18 21 25 33 43 54
50 mm 2 3 4 4 5 7 8 10 11 18 26 36 47 59 73 82
80 mm 5 6 6 7 7 10 14 19 23 27 33 36 44 57
Shading indicates flow range.
Independently tested at the CIT, California, USA
