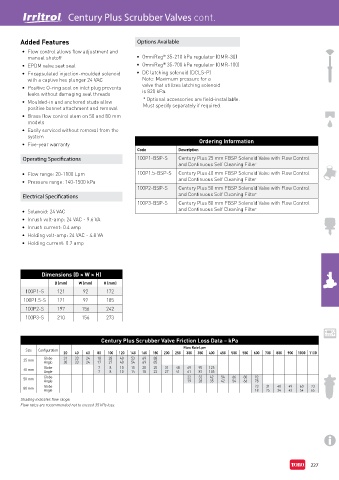

Century Plus Scrubber Valves cont.
R

Added Features Options Available

• Flow control allows flow adjustment and
®
manual shutoff • OmniReg 35-210 kPa regulator (OMR-30)
®
• EPDM valve seat seal • OmniReg 35-700 kPa regulator (OMR-100)
• Encapsulated injection-moulded solenoid • DC latching solenoid (DCLS-P)
with a captive hex plunger 24 VAC Note: Maximum pressure for a
• Positive O-ring seal on inlet plug prevents valve that utilizes latching solenoid
leaks without damaging seal threads is 820 kPa.
• Moulded-in and anchored studs allow * Optional accessories are field-installable.
positive bonnet attachment and removal Must specify separately if required.
• Brass flow control stem on 50 and 80 mm
models
• Easily serviced without removal from the
system
• Five-year warranty Ordering Information
Code Description
Operating Specifications 100P1-BSP-S Century Plus 25 mm FBSP Solenoid Valve with Flow Control
and Continuous Self Cleaning Filter

• Flow range: 20-1100 Lpm 100P1.5-BSP-S Century Plus 40 mm FBSP Solenoid Valve with Flow Control
• Pressure range: 140-1500 kPa and Continuous Self Cleaning Filter
100P2-BSP-S Century Plus 50 mm FBSP Solenoid Valve with Flow Control
Electrical Specifications and Continuous Self Cleaning Filter
100P3-BSP-S Century Plus 80 mm FBSP Solenoid Valve with Flow Control
• Solenoid: 24 VAC and Continuous Self Cleaning Filter
• Inrush volt-amp: 24 VAC - 9.6 VA
• Inrush current: 0.4 amp
• Holding volt-amp: 24 VAC - 4.8 VA
• Holding current: 0.2 amp

Dimensions (D × W × H)

D (mm) W (mm) H (mm)
100P1-S 121 92 172
100P1.5-S 121 92 185
100P2-S 197 156 242
100P3-S 210 156 273

Century Plus Scrubber Valve Friction Loss Data – kPa
Flow Rate Lpm
Size Configuration
20 40 60 80 100 120 140 160 180 200 250 300 350 400 450 500 550 600 700 800 900 1000 1100
Globe 31 33 24 18 28 40 53 69 88
25 mm Angle 30 33 24 17 27 40 54 69 85
40 mm Globe 7 8 10 15 20 25 31 48 69 95 125
Angle 7 8 10 14 18 22 27 41 61 81 105
50 mm Globe 22 32 42 54 66 80 92
42
35
28
78
66
54
19
Angle
Globe 23 31 40 49 60 73
80 mm
Angle 18 25 34 43 54 65
Shading indicates flow range.
Flow rates are recommended not to exceed 35 kPa loss.

227
