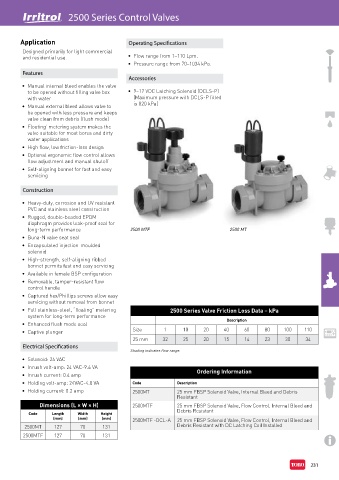

Page 247 - Toro Irrigation Product Catalogue August 2020

2500 Series Control Valves
R

Application Operating Specifications

Designed primarily for light commercial
and residential use. • Flow range from 1–110 Lpm.
• Pressure range from 70–1034 kPa.
Features
Accessories
• Manual internal bleed enables the valve
to be opened without filling valve box • 9–12 VDC Latching Solenoid (DCLS-P)
with water (Maximum pressure with DCLS-P fitted
• Manual external bleed allows valve to is 820 kPa)
be opened with less pressure and keeps
valve clean from debris (flush mode)
• Floating’ metering system makes the
valve suitable for most bores and dirty
water applications
• High flow, low friction-loss design
• Optional ergonomic flow control allows
flow adjustment and manual shutoff
• Self-aligning bonnet for fast and easy
servicing

Construction

• Heavy-duty, corrosion and UV resistant
PVC and stainless steel construction
• Rugged, double-beaded EPDM
diaphragm provides leak-proof seal for
long-term performance 2500 MTF 2500 MT
• Buna-N valve seat seal
• Encapsulated injection-moulded
solenoid
• High-strength, self-aligning ribbed
bonnet permits fast and easy servicing
• Available in female BSP configuration
• Removable, tamper-resistant flow
control handle
• Captured hex/Phillips screws allow easy
servicing without removal from bonnet
• Full stainless-steel, “floating” metering 2500 Series Valve Friction Loss Data – kPa
system for long-term performance
Description
• Enhanced flush mode seal
• Captive plunger Size 1 10 20 40 60 80 100 110
25 mm 32 25 20 15 14 23 30 34
Electrical Specifications
Shading indicates flow range.
• Solenoid: 24 VAC
• Inrush volt-amp: 24 VAC-9.6 VA
• Inrush current: 0.4 amp Ordering Information
• Holding volt-amp: 24VAC-4.8 VA Code Description
• Holding current: 0.2 amp 2500MT 25 mm FBSP Solenoid Valve, Internal Bleed and Debris
Resistant
Dimensions (L × W × H) 2500MTF 25 mm FBSP Solenoid Valve, Flow Control, Internal Bleed and
Debris Resistant
Code Length Width Height
(mm) (mm) (mm) 2500MTF -DCL-A 25 mm FBSP Solenoid Valve, Flow Control, Internal Bleed and
2500MT 127 70 131 Debris Resistant with DC Latching Coil Installed
2500MTF 127 70 131

231
