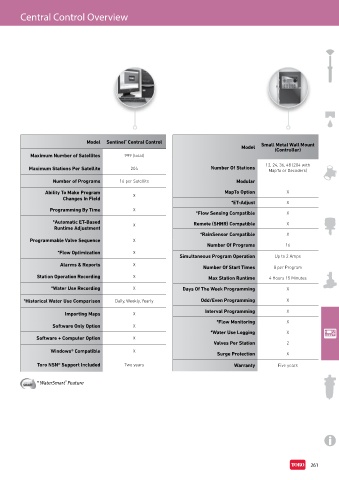

Central Control Overview

Model Sentinel Central Control Small Metal Wall Mount
®
Model
(Controller)
Maximum Number of Satellites 999 (total)
12, 24, 36, 48 (204 with
Maximum Stations Per Satellite 204 Number Of Stations MapTo or Decoders)
Number of Programs 16 per Satellite Modular

Ability To Make Program MapTo Option X
Changes In Field X
*ET-Adjust X
Programming By Time X
*Flow Sensing Compatible X
*Automatic ET-Based Remote (SHHR) Compatible X
Runtime Adjustment X
*RainSensor Compatible X
Programmable Valve Sequence X
Number Of Programs 16
*Flow Optimization X
Simultaneous Program Operation Up to 2 Amps
Alarms & Reports X
Number Of Start Times 8 per Program
Station Operation Recording X Max Station Runtime 4 Hours 15 Minutes
*Water Use Recording X Days Of The Week Programming X

*Historical Water Use Comparison Daily, Weekly, Yearly Odd/Even Programming X

Importing Maps X Interval Programming X
*Flow Monitoring X
Software Only Option X
*Water Use Logging X
Software + Computer Option X
Valves Per Station 2
Windows® Compatible X Surge Protection X

Toro NSN® Support Included Two years Warranty Five years

®
* WaterSmart Feature
