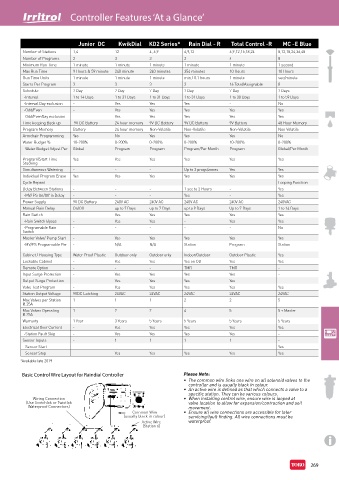

Controller Features ‘At a Glance’
R

Junior DC KwikDial KD2 Series* Rain Dial - R Total Control -R MC -E Blue
Number of Stations 1,4 12 4, 6,9 6,9,12 6,9,12,15,18,24 8,12,18,24,36,48
Number of Programs 2 3 3 3 4 8
Minimum Run Time 1 minute 1 minute 1 minute 1 minute 1 minute 1 second
Max Run Time 9 Hours & 59 minute 240 minute 240 minutes 354 minutes 10 Hours 10 Hours
Run Time Units 1 minute 1 minute 1 minute min / 0.1 hours 1 minute sec/minute
Starts Per Program 3 3 3 3 16 Total/Assignable 8
Schedule 7 Day 7 Day 7 Day 7 Day 7 Day 7 Days
-Interval 1 to 14 Days 1 to 31 Days 1 to 31 Days 1 to 31 Days 1 to 30 Days 1 to 59 Days
-Interval Day exclusion - Yes Yes Yes - No
-Odd/Even - Yes Yes Yes Yes Yes
-Odd/EvenDay exclusion - Yes Yes Yes Yes Yes
Time keeping Back up 9V DC Battery 24 hour memory 9V DC Battery 9V DC Battery 9V Battery 48 Hour Memory
Program Memory Battery 24 hour memory Non-Volatile Non-Volatile Non-Volatile Non Volatile
Armchair Programming Yes No Yes Yes Yes No
Water Budget % 10-200% 0-200% 0-200% 0-200% 10-200% 0-200%
-Water Budget Adjust Per Global Program Program Program/Per Month Program Global/Per Month
Program\Start Time Yes Yes Yes Yes Yes Yes
Stacking
Simultaneous Watering - - - Up to 3 progs/zones Yes Yes
Individual Program Erase Yes Yes Yes Yes Yes Yes
Cycle Repeat - - - - - Looping Function
Delay Between Stations - - - 1 sec to 2 Hours - Yes
-MV/ PS On/Off in Delay - - - Yes - Yes
Power Supply 9V DC Battery 240V AC 240V AC 240V AC 240V AC 240VAC
Manual Rain Delay On/Off up to 7 Days up to 7 Days up to 9 Days Up to 7 Days 1 to 14 Days
Rain Switch - Yes Yes Yes Yes Yes
-Rain Switch Byass - Yes Yes - Yes Yes
-Programable Rain - - - - - No
Switch
Master Valve/ Pump Start - Yes Yes Yes Yes Yes
-MV/PS Programable Per - N/A N/A Station Program Station
Cabinet / Housing Type Water Proof Plastic Outdoor only Outdoor only Indoor/Outdoor Outdoor Plastic Yes
Lockable Cabinet - Yes Yes Yes on OD Yes Yes
Remote Option - - - TMR TMR -
Input Surge Protection - Yes Yes Yes Yes -
Output Surge Protection - Yes Yes Yes Yes -
Valve Test Program - Yes Yes Yes Yes Yes
Station Output Voltage 9VDC Latching 24VAC 24VAC 24VAC 24VAC 24VAC
Max Valves per Station 1 1 1 2 2 5
@.25A
Max Valves Operating 1 2 2 4 5 5 + Master
@.25A
Warranty 1 Year 3 Years 5 Years 5 Years 5 Years 5 Years
Electrical Over Current - Yes Yes Yes Yes Yes
-Station Fault Skip - Yes Yes Yes Yes -
Sensor Inputs - 1 1 1 1 -
-Sensor Start - - - - - Yes
-Sensor Stop - Yes Yes Yes Yes Yes
*Available late 2019
Basic Control Wire Layout for Raindial Controller Please Note:
• The common wire links one wire on all solenoid valves to the
controller and is usually black in colour.
• An active wire is defined as that which connects a valve to a
specific station. They can be various colours.
Wiring Connection • When installing control wire, ensure wire is looped at
(Use Scotchlok or Twistlok valve location to allow for expansion/contraction and soil
Waterproof Connectors) movement.
Common Wire • Ensure all wire connections are accessible for later
(usually black in colour) servicing/fault finding. All wire connections must be
Active Wire waterproof.
(Station 6)
