Page 30 - Toro Irrigation Product Catalogue August 2020
P. 30

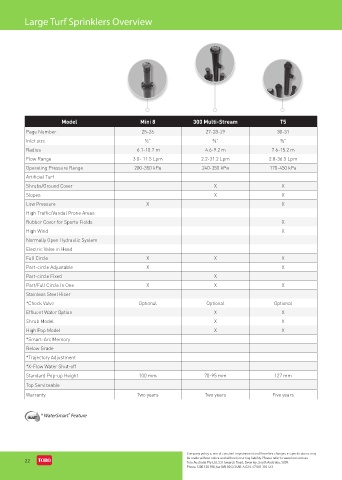

Large Turf Sprinklers Overview
Model Mini 8 300 Multi-Stream T5
Page Number 25-26 27-28-29 30-31
Inlet size ½” ¾” ¾”
Radius 6.1-10.7 m 4.6-9.2 m 7.6-15.2 m
Flow Range 3.0- 11.5 Lpm 2.2-31.2 Lpm 2.8-36.5 Lpm
Operating Pressure Range 200-350 kPa 240-350 kPa 170-450 kPa
Artificial Turf
Shrubs/Ground Cover X X
Slopes X X
Low Pressure X X
High Traffic/Vandal Prone Areas
Rubber Cover for Sports Fields X
High Wind X
Normally Open Hydraulic System
Electric Valve in Head
Full Circle X X X
Part-circle Adjustable X X
Part-circle Fixed X
Part/Full Circle In One X X X
Stainless Steel Riser
*Check Valve Optional Optional Optional
Effluent Water Option X X
Shrub Model X X
High Pop Model X X
*Smart-Arc Memory
Below Grade
*Trajectory Adjustment
*X-Flow Water Shut-off
Standard Pop-up Height 100 mm 70-95 mm 127 mm
Top Serviceable
Warranty Two years Two years Five years
®
* WaterSmart Feature
Company policy is one of constant improvement and therefore changes in specifications may
be made without notice and without incurring liability. Please refer to www.toro.com.au
22 Toro Australia Pty Ltd, 53 Howards Road, Beverley, South Australia, 5009.
Phone 1300 130 898, fax (08) 8243 2488. A.B.N. 47 001 310 443
