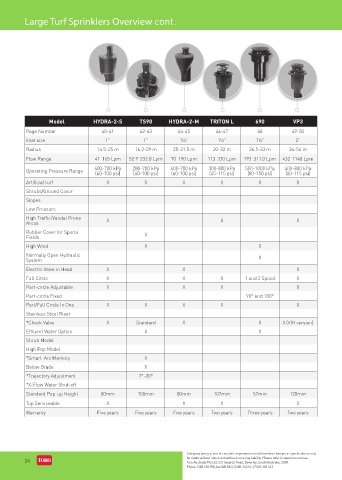

Page 32 - Toro Irrigation Product Catalogue August 2020

Large Turf Sprinklers Overview cont.

Model HYDRA-2-S TS90 HYDRA-2-M TRITON L 690 VP3

Page Number 40-41 42-43 44-45 46-47 48 49-50
Inlet size 1” 1” 1½” 1½” 1½” 2”
Radius 14.5-25 m 16.2-29 m 20-31.5 m 20-32 m 26.5-33 m 34-54 m
Flow Range 41-165 Lpm 52.9-232.8 Lpm 70-190 Lpm 113-330 Lpm 193-311.0 Lpm 432-1148 Lpm

Operating Pressure Range 400-700 kPa 280-700 kPa 400-700 kPa 300-800 kPa 550-1000 kPa 400-800 kPa
(45-115 psi)
(60-100 psi)
(40-100 psi)
(60-100 psi)
(60-115 psi)
(80-150 psi)
Artificial turf X X X X X X
Shrubs/Ground Cover
Slopes
Low Pressure
High Traffic/Vandal Prone
Areas X X X
Rubber Cover for Sports X
Fields
High Wind X X
Normally Open Hydraulic X
System
Electric Valve in Head X X X
Full Circle X X X 1 and 2 Speed X
Part-circle Adjustable X X X X
Part-circle Fixed 90° and 180°
Part/Full Circle In One X X X X X
Stainless Steel Riser
*Check Valve X Standard X X X (VIH version)
Effluent Water Option X X
Shrub Model
High Pop Model
*Smart-Arc Memory X
Below Grade X
*Trajectory Adjustment 7°-30°
*X-Flow Water Shut-off
Standard Pop-up Height 80mm 100mm 80mm 107mm 57mm 120mm

Top Serviceable X X X X
Warranty Five years Five years Five years Two years Three years Two years

Company policy is one of constant improvement and therefore changes in specifications may
be made without notice and without incurring liability. Please refer to www.toro.com.au
