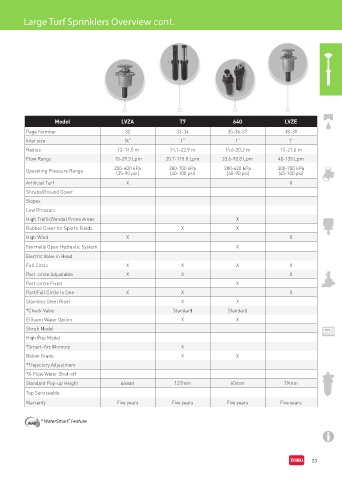

Large Turf Sprinklers Overview cont.
Model LVZA T7 640 LVZE
Page Number 32 33-34 35-36-37 38-39
Inlet size ¾” 1” 1” 1”
Radius 12-14.5 m 14.1-22.9 m 14.6-20.2 m 15-21.6 m
Flow Range 15-29.3 Lpm 25.7-115.8 Lpm 23.6-92.8 Lpm 40-135 Lpm
250-600 kPa 280-700 kPa 280-620 kPa 300-700 kPa
Operating Pressure Range (35-90 psi) (40-100 psi) (40-90 psi) (45-100 psi)
Artificial Turf X X
Shrubs/Ground Cover
Slopes
Low Pressure
High Traffic/Vandal Prone Areas X
Rubber Cover for Sports Fields X X
High Wind X X
Normally Open Hydraulic System X
Electric Valve in Head
Full Circle X X X X
Part-circle Adjustable X X X
Part-circle Fixed X
Part/Full Circle In One X X X
Stainless Steel Riser X X
*Check Valve Standard Standard
Effluent Water Option X X
Shrub Model
High Pop Model
*Smart-Arc Memory X
Below Grade X X
*Trajectory Adjustment
*X-Flow Water Shut-off
Standard Pop-up Height 66mm 127mm 60mm 79mm
Top Serviceable
Warranty Five years Five years Five years Five years
®
* WaterSmart Feature
