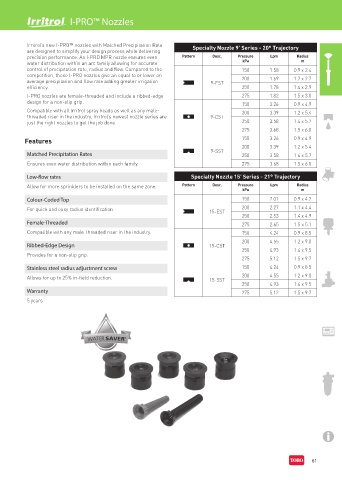

Page 69 - Toro Irrigation Product Catalogue August 2020

I-PRO™ Nozzles
R

Irritrol’s new I-PRO™ nozzles with Matched Precipitation Rate Specialty Nozzle 9’ Series - 20° Trajectory
are designed to simplify your design process while delivering
precision performance. An I-PRO MPR nozzle ensures even Pattern Desc. Pressure Lpm Radius
water distribution within an arc family allowing for accurate kPa m
control of precipitation rate, radius and flow. Compared to the 150 1.58 0.9 x 2.4
competition, these I-PRO nozzles give an equal to or lower on
average precipitation and flow rate adding greater irrigation 9-EST 200 1.69 1.2 x 2.7
efficiency. 250 1.78 1.4 x 2.9
I-PRO nozzles are female-threaded and include a ribbed-edge 275 1.82 1.5 x 3.0
design for a non-slip grip.
150 3.26 0.9 x 4.9
Compatible with all Irritrol spray heads as well as any male- 200 3.39 1.2 x 5.4
threaded riser in the industry, Irritrol’s newest nozzle series are 9-CST
just the right nozzles to get the job done. 250 3.58 1.4 x 5.7
275 3.68 1.5 x 6.0
Features 150 3.26 0.9 x 4.9
200 3.39 1.2 x 5.4
9-SST
Matched Precipitation Rates 250 3.58 1.4 x 5.7
Ensures even water distribution within each family. 275 3.68 1.5 x 6.0

Low-flow rates Specialty Nozzle 15’ Series - 21° Trajectory
Allow for more sprinklers to be installed on the same zone. Pattern Desc. Pressure Lpm Radius
kPa m
Colour-Coded Top 150 2.01 0.9 x 4.2
For quick and easy radius identification. 200 2.27 1.1 x 4.4
15-EST
250 2.53 1.4 x 4.9
Female-Threaded 275 2.65 1.5 x 5.1
Compatible with any male-threaded riser in the industry. 150 4.24 0.9 x 8.5
200 4.55 1.2 x 9.0
Ribbed-Edge Design 15-CST
250 4.93 1.4 x 9.5
Provides for a non-slip grip.
275 5.12 1.5 x 9.7
Stainless steel radius adjustment screw 150 4.24 0.9 x 8.5
Allows for up to 25% in-field reduction. 15-SST 200 4.55 1.2 x 9.0
250 4.93 1.4 x 9.5
Warranty 275 5.12 1.5 x 9.7
5 years

61
