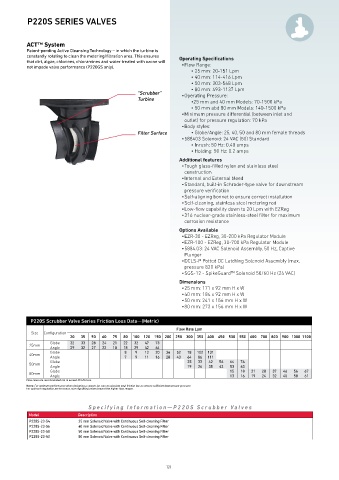

P220S SERIES VALVES

ACT™ System
Patent-pending Active Cleansing Technology – in which the turbine is
constantly rotating to clean the metering/filtration area. This ensures Operating Specifications
that dirt, algae, chlorines, chloramines and water treated with ozone will • Flow Range:
not impede valve performance (P220GS only).
• 25 mm: 20-151 Lpm
• 40 mm: 114-416 Lpm
• 50 mm: 303-568 Lpm
• 80 mm: 493-1137 Lpm
“Scrubber” • Operating Pressure:
Turbine •25 mm and 40 mm Models: 70-1500 kPa
• 50 mm abd 80 mm Models: 140-1500 kPa
• Minimum pressure differential (between inlet and
outlet) for pressure regulation: 70 kPa
• Body styles:
Filter Surface • Globe/Angle: 25, 40, 50 and 80 mm female threads
• 588403 Solenoid: 24 VAC (50) Standard
• Inrush: 50 Hz: 0.40 amps
• Holding: 50 Hz: 0.2 amps
Additional features
• Tough glass-filled nylon and stainless steel
construction
• Internal and External bleed
• Standard, built-in Schrader-type valve for downstream
pressure verification
• Self-aligning bonnet to ensure correct installation
• Self-cleaning, stainless steel metering rod
• Low-flow capability down to 20 Lpm with EZReg
• 316 nuclear-grade stainless-steel filter for maximum
corrosion resistance
Options Available
• EZR-30 - EZReg, 30-200 kPa Regulator Module
• EZR-100 - EZReg, 30-700 kPa Regulator Module
• 5884.03: 24 VAC Solenoid Assembly, 50 Hz, Captive
Plunger
• DCLS-P Potted DC Latching Solenoid Assembly (max.
pressure 820 kPa)
TM
• SGS-12 - SpikeGuard Solenoid 50/60 Hz (24 VAC)
Dimensions
• 25 mm: 171 x 92 mm H x W
• 40 mm: 184 x 92 mm H x W
• 50 mm: 241 x 156 mm H x W
• 80 mm: 273 x 156 mm H x W

P220S Scrubber Valve Series Friction Loss Data—(Metric)
Flow Rate Lpm
Size Configuration
20 35 50 60 75 80 100 120 150 200 250 300 350 400 450 500 550 600 700 800 900 1000 1100
Globe 32 33 28 24 21 22 32 47 73
25mm
Angle 29 32 27 22 18 18 29 42 64
Globe 8 9 12 20 34 52 78 102 131
40mm
Angle 7 9 11 16 28 43 64 86 111
Globe 25 33 42 56 64 76
50mm
Angle 19 26 35 43 53 63
Globe 15 18 21 28 37 46 56 67
80mm
Angle 13 16 19 24 32 40 50 61
Flow rates are recommended not to exceed 35 kPa loss.
Notes: For optimum performance when designing a system, be sure to calculate total friction loss to ensure sufficient downstream pressure.
For optimum regulation performance, size regulating valves toward the higher flow ranges.
Specifying Information—P220S Scrubber V alves
Model Description
P220S-23-54 25 mm Solenoid Valve with Continuous Self-cleaning Filter
P220S-23-56 40 mm Solenoid Valve with Continuous Self-cleaning Filter
P220S-23-58 50 mm Solenoid Valve with Continuous Self-cleaning Filter
P220S-23-50 80 mm Solenoid Valve with Continuous Self-cleaning Filter
