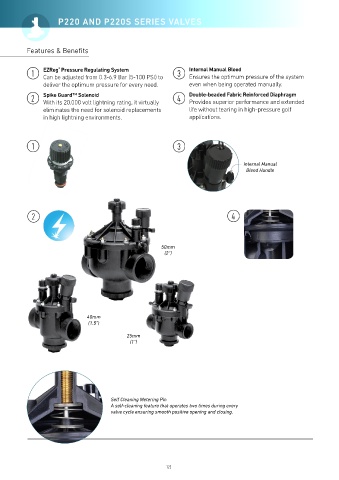

P220 AND P220S SERIES VALVES

Features & Benefits

®
1 EZReg Pressure Regulating System 3 Internal Manual Bleed
Ensures the optimum pressure of the system
Can be adjusted from 0.3-6.9 Bar (5-100 PSI) to
deliver the optimum pressure for every need. even when being operated manually.
2 Spike Guard™ Solenoid 4 Double-beaded Fabric Reinforced Diaphragm
Provides superior performance and extended
With its 20,000 volt lightning rating, it virtually
eliminates the need for solenoid replacements life without tearing in high-pressure golf
in high lightning environments. applications.

1 3

Internal Manual
Bleed Handle

2 4

50mm
(2”)

40mm
(1.5”)

25mm
(1”)

Self Cleaning Metering Pin
A self-cleaning feature that operates two times during every
valve cycle ensuring smooth positive opening and closing.
