Fundamentals of Stress and Vibration 1. Mathematics for Structural mechanics
[A Practical guide for aspiring Designers / Analysts]
– ‹• Ž‡ƒ” –Šƒ–ǡ –Š‡ ȋšǡ › ƒ† œȌ ‘‘”†‹ƒ–‡• ‘ˆ –Š‡ Ž‘ ƒ–‹‘ ƒ „‡ †‡”‹˜‡† ‹ –‡”• ‘ˆ ǮȽǯǡ ǮȾǯ ƒ† ”ƒǦ
†‹—• Ǯ ǯ ‘ˆ –Š‡ ‡ƒ”–ŠǤ Š‡ ”ƒ†‹—• Œ‘‹‹‰ –Š‡ Ž‘ ƒ–‹‘ ‘ˆ ‹–‡”‡•– ƒ† –Š‡ ‘ˆ –Š‡ ‡ƒ”–Š ‹• ’”‘Œ‡ –‡†
‘–‘ –Š‡ ȋšǡ › ƒ† œȌ ƒš‡• –‘ ‰‡– –Š‡ ȋšǡ › ƒ† œȌ ‘‘”†‹ƒ–‡•ǡ ƒ• •Š‘™ ‹ ȏ ‹‰ ͳǤ͹͵Ȑ

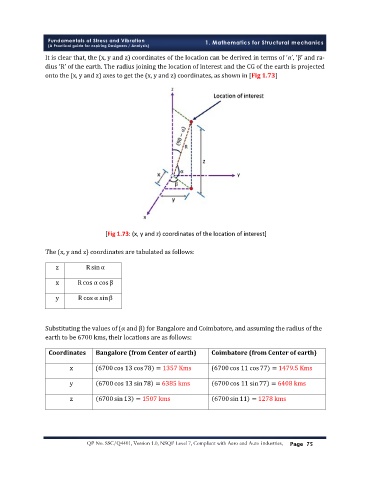

[Fig 1.73: (x, y and z) coordinates of the location of interest]

The (x, y and z) coordinates are tabulated as follows:

z R sin α

x R cos α cosβ

y R cos α sinβ

Substituting the values of (α and β) for Bangalore and Coimbatore, and assuming the radius of the
earth to be 6700 kms, their locations are as follows:

Coordinates Bangalore (from Center of earth) Coimbatore (from Center of earth)

x (6700 cos 13 cos78) = 1357 Kms (6700 cos 11 cos77) = 1479.5 Kms

y 6700 cos 13 sin78 = 6385 kms 6700 cos 11 sin77 = 6408 kms

z 6700 sin 13 = 1507 kms 6700 sin 11 = 1278 kms

QP No. SSC/Q4401, Version 1.0, NSQF Level 7, Compliant with Aero and Auto Industries, Page 75
