Page 121 - Physics Form 5 KSSM_Neat

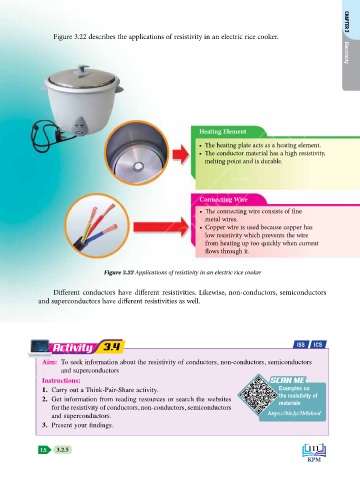

Figure 3.22 describes the applications of resistivity in an electric rice cooker. CHAPTER 3

Electricity

KEMENTERIAN PENDIDIKAN MALAYSIA

Heating Element
• The heating plate acts as a heating element.
• The conductor material has a high resistivity,
melting point and is durable.

Connecting Wire
• The connecting wire consists of fine
metal wires.
• Copper wire is used because copper has
low resistivity which prevents the wire
from heating up too quickly when current
flows through it.

Figure 3.22 Applications of resistivity in an electric rice cooker

Different conductors have different resistivities. Likewise, non-conductors, semiconductors
and superconductors have different resistivities as well.

Activity 3.4 ISS ICS

Aim: To seek information about the resistivity of conductors, non-conductors, semiconductors
and superconductors
SCAN ME
Instructions: SCAN ME
1. Carry out a Think-Pair-Share activity. Examples on
the resistivity of
2. Get information from reading resources or search the websites materials
for the resistivity of conductors, non-conductors, semiconductors
and superconductors. https://bit.ly/3b0skwd
3. Present your findings.

LS 3.2.5 111
