Page 34 - i-MeIV Product Information

Chassis Electrical

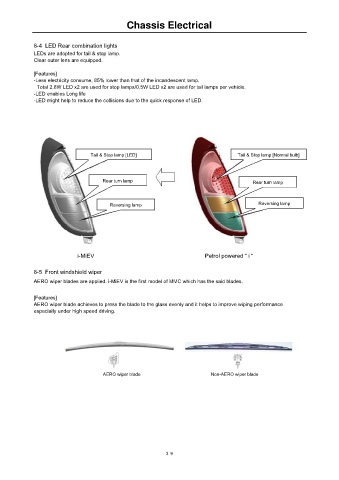

8-4 LED Rear combination lights
LEDs are adopted for tail & stop lamp.
Clear outer lens are equipped.

[Features]
-Less electricity consume, 85% lower than that of the incandescent lamp.
Total 2.8W LED x2 are used for stop lamps/0.5W LED x2 are used for tail lamps per vehicle.
-LED enables Long life
-LED might help to reduce the collisions due to the quick response of LED.

Tail & Stop lamp [LED] Tail & Stop lamp [Normal bulb]

Rear turn lamp Rear turn lamp

Reversing lamp Reversing lamp

i-MiEV Petrol powered “ i “

8-5 Front windshield wiper
AERO wiper blades are applied. i-MiEV is the first model of MMC which has the said blades.

[Features]
AERO wiper blade achieves to press the blade to the glass evenly and it helps to improve wiping performance
especially under high speed driving.

AERO wiper blade Non-AERO wiper blade

３９
