Chassis Electrical

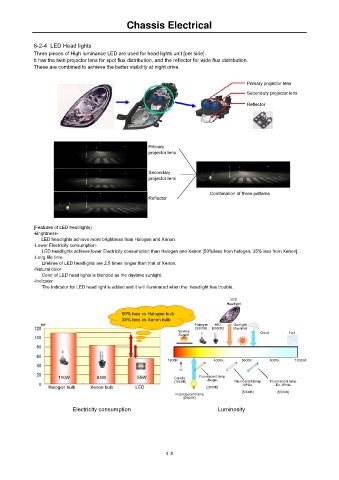

8-2-4 LED Head lights
Three pieces of High luminance LED are used for head lights unit [per side].
It has the twin projector lens for spot flux distribution, and the reflector for wide flux distribution.
These are combined to achieve the better visibility at night drive.

Primary projector lens
Secondary projector lens
Reflector

Primary
projector lens

Secondary
projector lens

Combination of three patterns
Reflector

[Features of LED headlights]
-Brightness-
LED headlights achieve more brightness than Halogen and Xenon.
-Lower Electricity consumption-
LED headlights achieve lower Electricity consumption than Halogen and Xenon [50%/less from halogen, 35% less from Xenon].
-Long life time
Lifetime of LED headlights are 2.5 times longer than that of Xenon.
-Natural color
Color of LED head lights is blended as the daytime sunlight.
-Indicator
The Indicator for LED head light is added and it will illuminated when the headlight has trouble.

LED
Headlight
50% less vs Halogen bulb
35% less vs Xenon bulb
Halogen HID Sunlight
[3300K] [4000K] [daytime]
Sunrise Cloud Fair
Sunset

1800K 4000K 5500K 8000K 12000K

110W 84W 55W Candle Fluorescent lamp
[1800K] -Beige- Fluorescent lamp Fluorescent lamp

Halogen bulb Xenon bulb LED [2800K] -White- -Ex. White-

[5000K] [6500K]
Incandescent lamp
[2800K]

Electricity consumption Luminosity
