Chassis Electrical

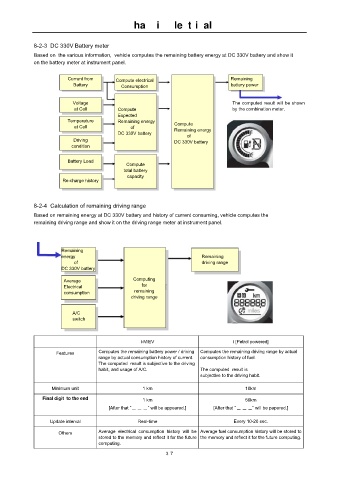

8-2-3 DC 330V Battery meter
Based on the various information, vehicle computes the remaining battery energy at DC 330V battery and show it
on the battery meter at instrument panel.

Current from Compute electrical Remaining
Battery Consumption battery power

Voltage The computed result will be shown
at Cell Compute by the combination meter.
Expected
Temperature Remaining energy
at Cell of Compute
Remaining energy
DC 330V battery of
Driving DC 330V battery
condition

Battery Load
Compute
total battery
capacity
Re-charge history

8-2-4 Calculation of remaining driving range
Based on remaining energy at DC 330V battery and history of current consuming, vehicle computes the
remaining driving range and show it on the driving range meter at instrument panel.

Remaining
energy Remaining
of driving range
DC 330V battery

Average Computing
Electrical for
consumption remaining
driving range

A/C
switch

i-MiEV i [Petrol powered]

Features Computes the remaining battery power / driving Computes the remaining driving range by actual
range by actual consumption history of current. consumption history of fuel.
The computed result is subjective to the driving
habit, and usage of A/C. The computed result is
subjective to the driving habit.
Minimum unit 1 km 10km

Final digit to the end 1 km 50km

[After that “ “ will be appeared.] [After that “ “ will be papered.]

Update interval Real-time Every 10-20 sec.
Others Average electrical consumption history will be Average fuel consumption history will be stored to
stored to the memory and reflect it for the future the memory and reflect it for the future computing.
computing.
