Heater & A/C

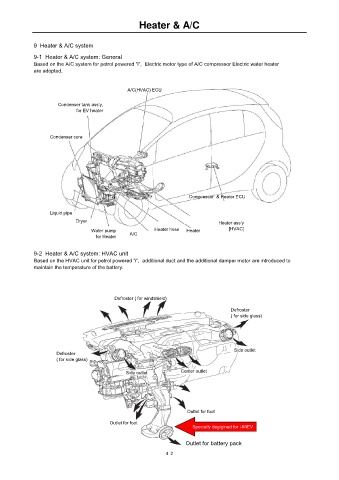

9 Heater & A/C system

9-1 Heater & A/C system: General
Based on the A/C system for petrol powered “i”, Electric motor type of A/C compressor Electric water heater
are adopted.

A/C(HVAC) ECU

Condenser tank ass’y,
for EV heater

Condenser core

Compressor & Heater ECU

Liquid pipe
Dryer Heater ass’y
Water pump A/C Heater hose Heater [HVAC]
for Heater

9-2 Heater & A/C system: HVAC unit
Based on the HVAC unit for petrol powered “i”, additional duct and the additional damper motor are introduced to
maintain the temperature of the battery.

Defroster ( for windshield)
Defroster
( for side glass)

Side outlet
Defroster
( for side glass)

Side outlet Center outlet

Outlet for foot
Outlet for foot
Specially degigined for i-MiEV

Outlet for battery pack

４２
