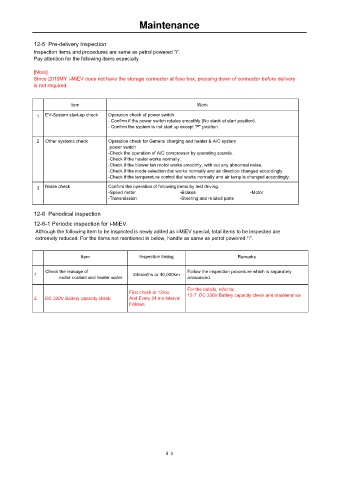

Maintenance

12-5 Pre-delivery Inspection
Inspection items and procedures are same as petrol powered “i”.
Pay attention for the following items especially.

[Note]
Since 2010MY i-MiEV does not have the storage connector at fuse box, pressing down of connector before delivery
is not required.

Item Work

1 EV-System start-up check Operation check of power switch
- Confirm if the power switch rotates smoothly (No stack at start position).
- Confirm the system is not start up except “P” position.

2 Other systems check Operation check for General charging and heater & A/C system
power switch
-Check the operation of A/C compressor by operating sounds.
-Check if the heater works normally.
-Check if the blower fan motor works smoothly, with out any abnormal noise.
-Check if the mode selection dial works normally and air direction changed accordingly
-Check if the temperature control dial works normally and air temp is changed accordingly.
3 Noise check Confirm the operation of following items by test driving.
-Speed meter -Brakes -Motor
-Transmission -Steering and related parts

12-6 Periodical inspection
12-6-1 Periodic inspection for i-MiEV
Although the following item to be inspected is newly added as i-MiEV special, total items to be inspected are
extremely reduced. For the items not mentioned in below, handle as same as petrol powered “i”.

Item Inspection timing Remarks

Check the leakage of Follow the inspection procedure which is separately
1 24months or 40,000km
motor coolant and heater water announced.
For the details, refer to;
First check at 12mo.
2 DC 330V Battery capacity check And Every 24 mo interval 12-7 DC 330V Battery capacity check and maintenance
Follows.

５３
