Maintenance

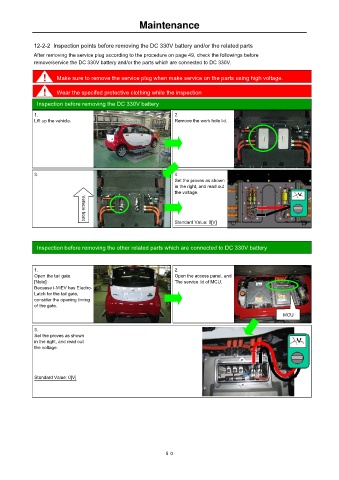

12-2-2 Inspection points before removing the DC 330V battery and/or the related parts
After removing the service plug according to the procedure on page 49, check the followings before
remove/service the DC 330V battery and/or the parts which are connected to DC 330V.

Make sure to remove the service plug when make service on the parts using high voltage.

Wear the specifed protective clothing while the inspection

Inspection before removing the DC 330V battery
1. 2.
Lift up the vehicle. Remove the work hole lid.

3. 4.
Set the proves as shown
in the right, and read out
the voltage.

Standard Value: 0[V]
Vehicle front

Ins pec t i o n b efor e r e m o v i ng th e ot her
Before removing the DC 330V battery related parts which are connected to DC 330V battery

1. 2.
Open the tail gate. Open the access panel, and
[Note] The service lid of MCU.
Because i-MiEV has Electro-
Latch for the tail gate,
consider the opening timing
of the gate.

MCU

3.
Set the proves as shown
in the right, and read out
the voltage.

Standard Value: 0[V]
