Maintenance

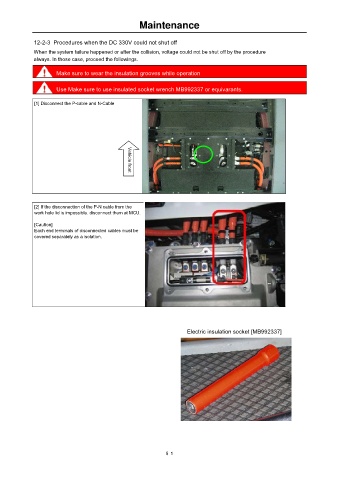

12-2-3 Procedures when the DC 330V could not shut off
When the system failure happened or after the collision, voltage could not be shut off by the procedure
always. In those case, proceed the followings.
Make sure to wear the insulation grooves while operation
Use Make sure to use insulated socket wrench MB992337 or equivarants.
[1] Disconnect the P-cable and N-Cable
Vehicle front
[2] If the disconnection of the P-N cable from the
work hole lid is impossible. disconnect them at MCU.
[Caution]
Each end terminals of disconnected cables must be
covered separately as a isolation.
Electric insulation socket [MB992337]
５１
