Maintenance

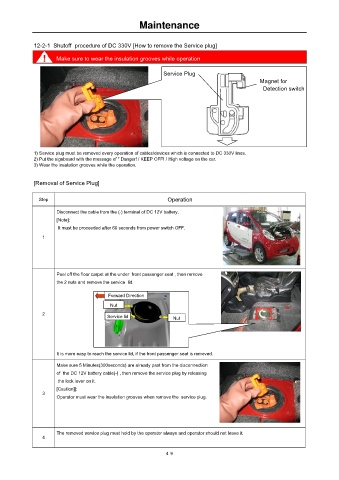

12-2-1 Shutoff procedure of DC 330V [How to remove the Service plug]

Make sure to wear the insulation grooves while operation

Service Plug
Magnet for
Detection switch

1) Service plug must be removed every operation of cables/devices which is connected to DC 330V lines.
2) Put the signboard with the message of ” Danger! / KEEP OFF! / High voltage on the car.
3) Wear the insulation grooves while the operation.

[Removal of Service Plug]

Step Operation

Disconnect the cable from the (-) terminal of DC 12V battery.
[Note]:
It must be proceeded after 60 seconds from power switch OFF.
1

Peel off the floor carpet at the under front passenger seat , then remove
the 2 nuts and remove the service lid.

Forward Direction
Nut
2 Service lid Nut

It is more easy to reach the service lid, if the front passenger seat is removed.
Make sure 5 Minutes(300seconds) are already past from the disconnection
of the DC 12V battery cable(-) , then remove the service plug by releasing
the lock lever on it.
[Caution]]:
3
Operator must wear the insulation grooves when remove the service plug.

The removed service plug must hold by the operator always and operator should not leave it.
4

４９
