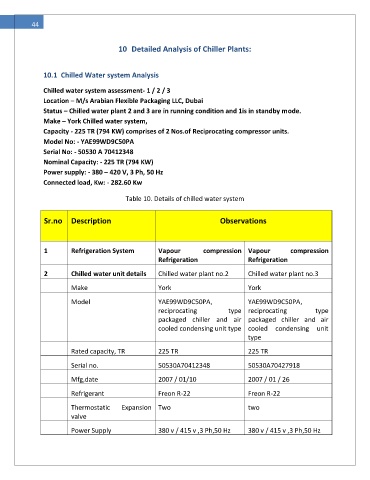

44

10 Detailed Analysis of Chiller Plants:

10.1 Chilled Water system Analysis

Chilled water system assessment- 1 / 2 / 3
Location – M/s Arabian Flexible Packaging LLC, Dubai
Status – Chilled water plant 2 and 3 are in running condition and 1is in standby mode.
Make – York Chilled water system,
Capacity - 225 TR (794 KW) comprises of 2 Nos.of Reciprocating compressor units.
Model No: - YAE99WD9C50PA

Serial No: - 50530 A 70412348
Nominal Capacity: - 225 TR (794 KW)
Power supply: - 380 – 420 V, 3 Ph, 50 Hz
Connected load, Kw: - 282.60 Kw

Table 10. Details of chilled water system

Sr.no Description Observations

1 Refrigeration System Vapour compression Vapour compression
Refrigeration Refrigeration

2 Chilled water unit details Chilled water plant no.2 Chilled water plant no.3

Make York York

Model YAE99WD9C50PA, YAE99WD9C50PA,
reciprocating type reciprocating type
packaged chiller and air packaged chiller and air
cooled condensing unit type cooled condensing unit
type

Rated capacity, TR 225 TR 225 TR

Serial no. 50530A70412348 50530A70427918

Mfg,date 2007 / 01/10 2007 / 01 / 26
Refrigerant Freon R-22 Freon R-22

Thermostatic Expansion Two two
valve

Power Supply 380 v / 415 v ,3 Ph,50 Hz 380 v / 415 v ,3 Ph,50 Hz
