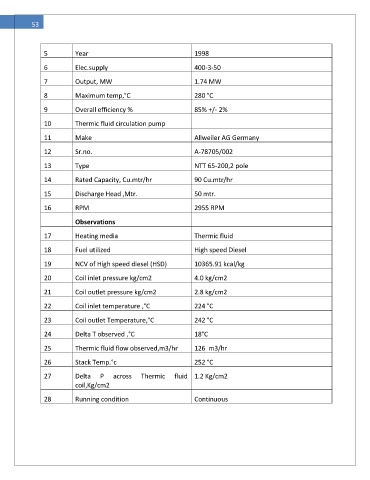

Page 53 - Arebian
P. 53
53
5 Year 1998
6 Elec.supply 400-3-50
7 Output, MW 1.74 MW
8 Maximum temp,°C 280 °C
9 Overall efficiency % 85% +/- 2%
10 Thermic fluid circulation pump
11 Make Allweiler AG Germany
12 Sr.no. A-78705/002
13 Type NTT 65-200,2 pole
14 Rated Capacity, Cu.mtr/hr 90 Cu.mtr/hr
15 Discharge Head ,Mtr. 50 mtr.
16 RPM 2955 RPM
Observations
17 Heating media Thermic fluid
18 Fuel utilized High speed Diesel
19 NCV of High speed diesel (HSD) 10365.91 kcal/kg
20 Coil inlet pressure kg/cm2 4.0 kg/cm2
21 Coil outlet pressure kg/cm2 2.8 kg/cm2
22 Coil inlet temperature ,°C 224 °C
23 Coil outlet Temperature,°C 242 °C
24 Delta T observed ,°C 18°C
25 Thermic fluid flow observed,m3/hr 126 m3/hr
26 Stack Temp.°c 252 °C
27 Delta P across Thermic fluid 1.2 Kg/cm2
coil,Kg/cm2
28 Running condition Continuous
