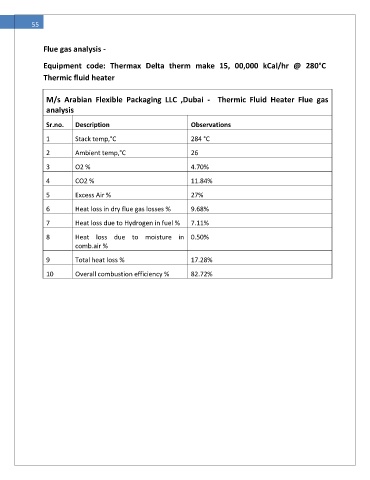

               Flue gas analysis -


               Equipment  code:  Thermax  Delta  therm  make  15,  00,000  kCal/hr  @  280°C

               Thermic fluid heater


                M/s  Arabian  Flexible  Packaging  LLC  ,Dubai  -        Thermic  Fluid  Heater  Flue  gas
                analysis

                Sr.no.    Description                           Observations

                1         Stack temp,°C                         284 °C

                2         Ambient temp,°C                       26

                3         O2 %                                  4.70%

                4         CO2 %                                 11.84%

                5         Excess Air %                          27%
                6         Heat loss in dry flue gas losses %    9.68%

                7         Heat loss due to Hydrogen in fuel %   7.11%

                8         Heat  loss  due  to  moisture  in  0.50%
                          comb.air %

                9         Total heat loss %                     17.28%

                10        Overall combustion efficiency %       82.72%
