P. 119

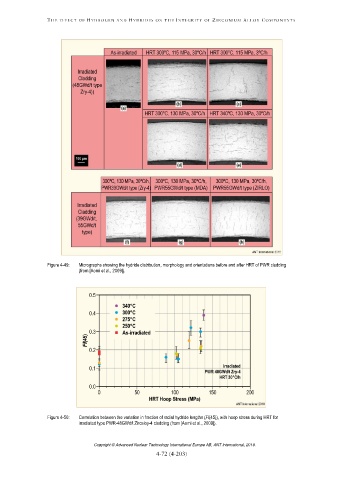

Figure 4-49: Micrographs showing the hydride distribution, morphology and orientations before and after HRT of PWR cladding
(from [Aomi et al., 2009]).
Figure 4-50: Correlation between the variation in fraction of radial hydride lengths (Fl(45)), with hoop stress during HRT for
irradiated type PWR-48GWd/t Zircaloy-4 cladding (from [Aomi et al., 2009]).
