Page 120 - The Effect of Hydrogen and Hydrides - ebook first test

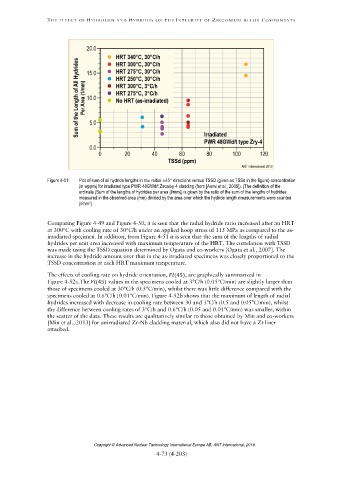

Figure 4-51: Plot of sum of all hydride lengths in the radial 45 directions versus TSSD (given as TSSd in the figure) concentration
(in wppm) for irradiated type PWR-48GWd/t Zircaloy-4 cladding (from [Aomi et al., 2009]). (The definition of the
ordinate (Sum of the lengths of hydrides per area (l/mm)) is given by the ratio of the sum of the lengths of hydrides
measured in the observed area (mm) divided by the area over which the hydride length measurements were counted
2
(l/mm )

 

(45)
(45)  
 
 
 
  
