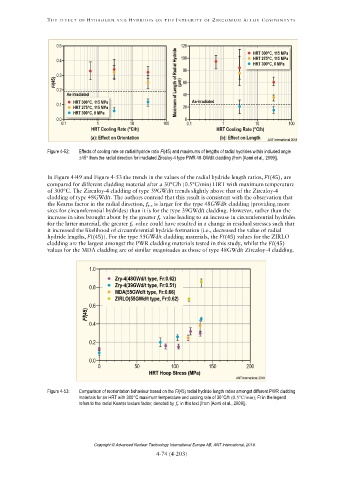

Figure 4-52: Effects of cooling rate on radial hydride ratio Fl(45) and maximums of lengths of radial hydrides within included angle
45 from the radial direction for irradiated Zircaloy-4 type PWR 48-GWd/t cladding (from [Aomi et al., 2009]).

(45)
 

(45) (45)
(45)

Figure 4-53: Comparison of reorientation behaviour based on the Fl(45) radial hydride length ratios amongst different PWR cladding
materials for an HRT with 300C maximum temperature and cooling rate of 30C/h (0.5°Cmin); Fr in the legend
refers to the radial Kearns texture factor, denoted by in this text (from [Aomi et al., 2009]).
