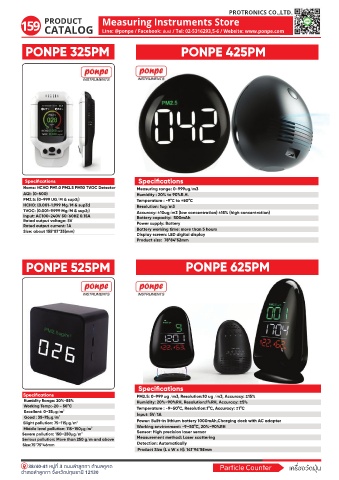

Page 168 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
159 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

PONPE 325PM PONPE 425PM

Specifications Specifications
Name: HCHO PM1.0 PM2.5 PM10 TVOC Detector Measuring range: 0-999ug/m3
AQI: (0-500) Humidity : 20% to 90%R.H.
PM2.5: (0-999 UG/M & sup3;) Temperature : -9°C to +50°C
HCHO: (0.001-1.999 Mg/M & sup3;) Resolution: 1ug/m3
TVOC: (0.001-9.999 Mg/M & sup3;) Accuracy: ±10ug/m3 (low concentration) ±15% (high concentration)
Input: AC100-240V 50/60HZ 0.15A Battery capacity: 500mAh
Rated output voltage: 5V
Rated output current: 1A Power supply: Battery
Size: about 155*87*35(mm) Battery working time: more than 5 hours
Display screen: LED digital display
Product size: 78*84*52mm

PONPE 525PM PONPE 625PM
ONPE 6
P
5PM
2

Specifications
Specifications PM2.5: 0-999 ug /m3, Resolution:10 ug /m3, Accuracy: ±15%
Humidity Range: 20%-85% Humidity: 20%~90%RH, Resolution:1%RH, Accuracy: ±5%
Working Temp:-20 - 50°C Temperature : -9~50°C, Resolution:1°C, Accuracy: ±1°C
Excellent: 0~35 g/m³ Input: 5V/1A
Good : 35~75 g/m³
Slight pollution: 75~115 g/m³ Power: Built-in lithium battery 1000mAh,Charging dock with AC adapter
Middle level pollution: 115~150 g/m³ Working environment: -9~50°C, 20%~90%RH
Severe pollution: 150~250 g/m³ Sensor: High precision laser sensor
Serious pollution: More than 250 g/m and above Measurement method: Laser scattering
Size:75*75*46mm Detection: Automatically
Product Size (L x W x H): 141*94*55mm

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดฝุ�น
