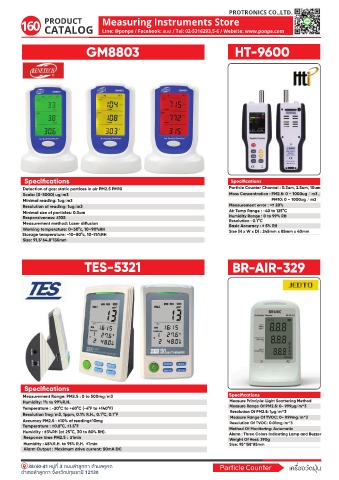

Page 169 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
160 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

GM8803 HT-9600

Specifications Specifications
Detection of gas: static partices in air PM2.5 PM10 Particle Counter Channel : 0.3um, 2.5um, 10um
Scale: (0-5000) ug/m3 Mass Concentration : PM2.5: 0 ~ 1000ug / m3 ,
Minimal reading: 1ug/m3 PM10: 0 ~ 1000ug / m3
Resolution of reading: 1ug/m3 Measurement error : <± 20%
Minimal size of particles: 0.3um Air Temp Range : -40 to 125°C
Responsiveness: ±10S Humidity Range : 0 to 99% RH
Resolution : 0.1°C
Measurement method: Laser di usion Basic Accuracy : ± 5% RH
Working temperature: 0~50°c, 10~90%RH Size (H x W x D) : 245mm x 85mm x 40mm
Storage temperature: -10~80°c, 10~75%RH
Size: 91,5*64,8*135mm

TES-5321 BR-AIR-329

Specifications
Measurement Range: PM2.5 : 0 to 500mg/m3 Specifications
Humidity: 1% to 99%R.H. Measure Principle: Light Scattering Method
Temperature : -20°C to +60°C (-4°F to +140°F) Measure Range Of PM2.5: 0- 999 g/m^3
Resolution 1mg/m3, 1ppm, 0.1% R.H., 0.1°C, 0.1°F Resolution Of PM2.5: 1 g/m^3
Measure Range Of TVOC: 0- 9.99mg/m^3
Accuracy PM2.5 : ±10% of reading±10mg Resolution Of TVOC: 0.01mg/m^3
Temperature : ±0.8°C, ±1.5°F Method Of Monitoring: Automatic
Humidity : ±3%RH (at 25°C, 30 to 80% RH). Alarm : Three Colors Indicating Lamp and Buzzer
Response time PM2.5 : ≤1min Weight Of Host: 290g
Humidity : 45%R.H. to 95% R.H. ≤1min Size: 95*158*85mm
Alarm Output : Maximum drive current: 50mA DC
