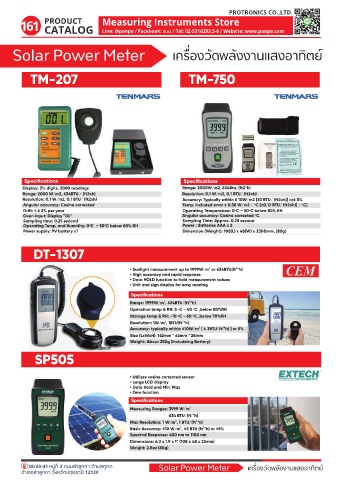

Solar Power Meter เครื่องวัดพลังงานแสงอาทิตย�

TM-207 TM-750

Specifications Specifications
Display: 3½ digits, 2000 readings Range: 2000W/m2, 634Btu/(ft2*h)
Range: 2000 W/m2, 634BTU / (ft2xh) Resolution: 0.1 W/m2, 0.1 BTU/ (ft2xh)
Resolution: 0.1 W/m2, 0.1 BTU/ (ft2xh) Accuracy: Typically within ± 10W/m2 [±3 BTU/ (ft2xh)] or± 5%
Angular accuracy: Cosine corrected Temp. included error ± 0.38 W/m2 / ºC [±0.12 BTU/ (ft2xh)] / ºC]
Drift: < ± 2% per year Operating Temperature: 0ºC ~ 50ºC below 80% RH
Over-input: Display "OL" Angular accuracy: Cosine corrected ºC
Sampling time: 0.25 second Sampling Time: Approx. 0.25 second
Operating Temp. and Humidity: 0ºC ~ 50ºC below 80% RH Power : Batteries AAA x 2
Power supply: 9V battery x1 Dimension (Weight): 108(L) x 48(W) x 23(H)mm. (80g)

DT-1307

• Sunlight measurement up to 1999W/m² or 634BTU(ft²*h)
• High accuracy and rapid response
• Data HOLD function to hold measurement values
• Unit and sign display for easy reading
Specifications
Range: 1999W/m², 634BTU/(ft²*h)
Operation temp & RH: 5 ºC - 40 ºC ,below 80%RH
Storage temp & RH: -10 ºC - 60 ºC ,below 70%RH
Resolution: 1W/m², 1BTU(ft²*h)
Accuracy: typically within ±10W/m² [ ± 3BTU/ft²*h) ] or 5%
Size (LxWxH): 162mm * 63mm * 28mm
Weight: About 250g (Includeing Battery)

SP505

• Utilizes cosine corrected sensor
• Large LCD display
• Data Hold and Min/Max
• Zero function
Specifications
Measuring Ranges: 3999 W/m²
634 BTU/(ft²*h)
Max Resolution: 1 W/m², 1 BTU/(ft²*h)
Basic Accuracy: ±10 W/m², ±3 BTU (ft²*h) or ±5%
Spectral Response: 400 nm to 1100 nm
Dimensions: 4.3 x 1.9 x 1" (108 x 48 x 23mm)
Weight: 2.8oz (80g)
