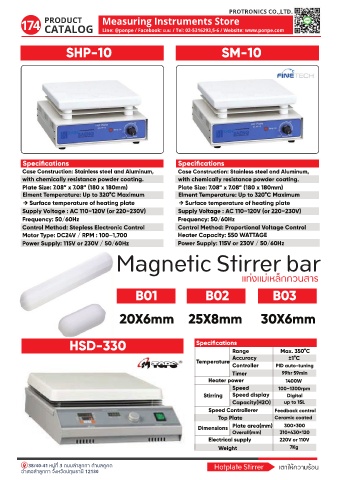

Page 183 - PONPE Catalogs 2022
P. 183
PROTRONICS CO.,LTD.
174 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com
SHP-10 SM-10
เตาให�ความร�อน
Specifications Specifications
Case Construction: Stainless steel and Aluminum, Case Construction: Stainless steel and Aluminum,
with chemically resistance powder coating. with chemically resistance powder coating.
Plate Size: 7.08” x 7.08” (180 x 180mm) Plate Size: 7.08” x 7.08” (180 x 180mm)
Elment Temperature: Up to 320°C Maximum Elment Temperature: Up to 320°C Maximum
→ Surface temperature of heating plate → Surface temperature of heating plate
Supply Voltage : AC 110~120V (or 220~230V) Supply Voltage : AC 110~120V (or 220~230V)
Frequency: 50/60Hz Frequency: 50/60Hz
Control Method: Stepless Electronic Control Control Method: Proportional Voltage Control
Motor Type: DC24V / RPM : 100~1,700 Heater Capacity: 550 WATTAGE
Power Supply: 115V or 230V / 50/60Hz Power Supply: 115V or 230V / 50/60Hz
Magnetic Stirrer bar
แท�งแม�เหล็กกวนสาร
B01 B02 B03
20X6mm 25X8mm 30X6mm
HSD-330 Specifications Max. 350°C
Range
Accuracy ±1°C
atur
e
Temperature
T
emper
Controller PID auto-tuning
Timer 99hr 59min
Heater power 1400W
Speed 100~1300rpm
Stirring Speed display Digital
Capacity(H2O) up to 15L
Speed Controllerer Feedback control
Top Plate Ceramic coated
Dimensions Plate area(mm) 300×300
Overall(mm) 310×430×120
Electrical supply 220V or 110V
Weight 7Kg
38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เตาให�ความร�อน
