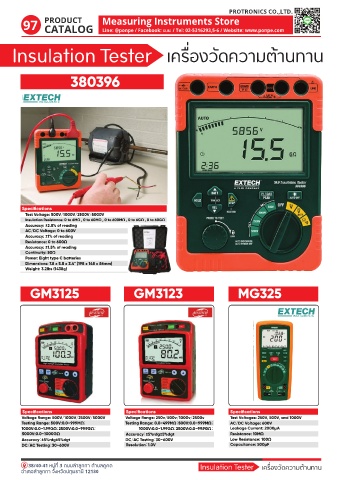

Page 100 - PONPE INSTRUMENTS

PROTRONICS CO.,LTD.
97 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

Insulation Tester เครื่องวัดความต�านทาน

380396

Specifications
Test Voltage: 500V/1000V/2500V/5000V
Insulation Resistance: 0 to 6M , 0 to 60M , 0 to 600M , 0 to 6G , 0 to 60G
Accuracy: ±2.5% of reading
AC/DC Voltage: 0 to 600V
Accuracy: ±1% of reading
Resistance: 0 to 600
Accuracy: ±1.5% of reading
Continuity: 50
Power: Eight type C batteries
Dimensions: 7.8 x 5.8 x 3.4" (198 x 148 x 86mm)
Weight: 3.2lbs (1438g)

GM3125 GM3123 MG325

Specifications Specifications Specifications
Voltage Range: 500V/1000V/2500V/5000V Voltage Range: 250v/500v/1000v/2500v Test Voltages: 250V, 500V, and 1000V
Testing Range: 500V:0.0~999M ʀ Testing Range: 0.0~499M ʀ500V:0.0~999M ʀ AC/DC Voltage: 600V
1000V:0.0~1.99G ʀ2500V:0.0~99.9G ʀ 1000V:0.0~1.99G ʀ2500V:0.0~99.9G ʀ Leakage Current: 2000 A
5000V:0.0~1000G Accuracyɿ±5%rdg±5%dgt Resistance: 10M
Accuracyɿ±5%rdg±5%dgt DC/AC Testingɿ30~600V Low Resistance: 100
DC/AC Testingɿ30~600V Resolutionɿ1.0V Capacitance: 500 F
