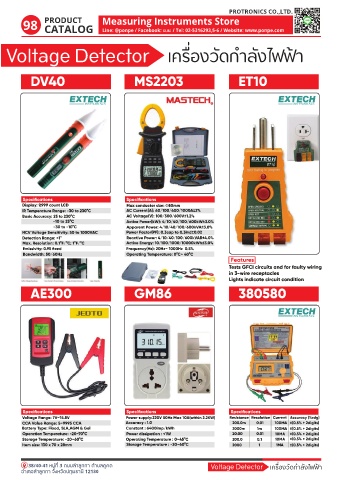

Page 101 - PONPE INSTRUMENTS

PROTRONICS CO.,LTD.
98 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

Voltage Detector เครื่องวัดกำลังไฟฟ�า

DV40 MS2203 ET10

Specifications Specifications
Display: 9,999 count LCD Max conductor size: Φ50mm
IR Temperature Range: -30 to 230°C AC Current(A): 40/100/400/1000A±2%
Basic Accuracy: 25 to 230°C AC Voltage(V): 100/300/600V±1.2%
-10 to 25°C Active Power(kW): 4/10/40/100/600kW±3.0%
-30 to -10°C Apparent Power: 4/10/40/100/600kVA±3.0%
NCV Voltage Sensitivity: 50 to 1000VAC Power Factor(PF): 0.3cap to 0.3ind±0.02
Detection Range: <1" Reactive Power: 4/10/40/100/600kVAR±4.0%
Max. Resolution: 0.1°F/°C; 1°F/°C Active Energy: 10/100/1000/10000kWh±3.0%
Emissivity: 0.95 fixed Frequency(Hz): 20Hz~ 1000Hz 0.5%
Bandwidth: 50/60Hz Operating Temperature: 0°C~ 40°C
Features
Tests GFCI circuits and for faulty wiring
in 3-wire receptacles
Lights indicate circuit condition
AE300 GM86 380580

Specifications Specifications Specifications
Voltage Range: 7V~15.8V Power supply:220V 50Hz Max 10A(within 2.2KW) Resistance Resolution Current Accuracy (%rdg)
CCA Value Range: 5~9995 CCA Accuracy : 1.0 200.0m 0.01 100MA ±(0.5% + 2digits)
Battery Type: Flood, SLA,AGM & Gel Constant : 6400imp/kWh 2000m 1m 100MA ±(0.5% + 2digits)
Operation Temperature: -20~70°C Power dissipation : <1W 20.00 0.01 10MA ±(0.5% + 2digits)
Storage Temperature: -20~60°C Operating Temperature : 0~45°C 200.0 0.1 10MA ±(0.5% + 2digits)
Item size: 130 x 70 x 28mm Storage Temperature : -20~60°C 2000 1 1MA ±(0.5% + 2digits)

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดกำลังไฟฟ�า
