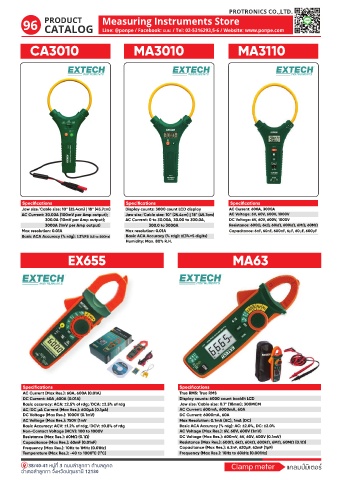

CA3010 MA3010 MA3110

Specifications Specifications Specifications
Jaw size/Cable size: 10" (25.4cm) | 18" (45.7cm) Display counts: 3000 count LCD display AC Current: 600A, 3000A
AC Current: 30.00A (100mV per Amp output); Jaw size/Cable size: 10" (25.4cm) | 18" (45.7cm) AC Voltage: 6V, 60V, 600V, 1000V
300.0A (10mV per Amp output); AC Current: 0 to 30.00A, 30.00 to 300.0A, DC Voltage: 6V, 60V, 600V, 1000V
3000A (1mV per Amp output) 300.0 to 3000A Resistance: 600 , 6k , 60k , 600k , 6M , 60M
Max resolution: 0.01A Max resolution: 0.01A Capacitance: 6nF, 60nF, 600nF, 6 F, 60 F, 600 F
Basic ACA Accuracy (% rdg): ±3%FS (45 to 500Hz) Basic ACA Accuracy (% rdg): ±(3%+5 digits)
Humidity: Max. 80% R.H.

EX655 MA63

Specifications Specifications
AC Current (Max Res.): 60A, 600A (0.01A) True RMS: True RMS
DC Current: 60A ,600A (0.01A) Display counts: 6000 count backlit LCD
Basic accuracy: ACA: ±2.5% of rdg;/DCA: ±2.5% of rdg Jaw size/Cable size: 0.7" (18mm); 300MCM
AC/DC A Current (Max Res.): 600 A (0.1 A) AC Current: 600mA, 6000mA, 60A
DC Voltage (Max Res.): 1000V (0.1mV) DC Current: 6000mA, 60A
AC Voltage (Max Res.): 750V (1mV Max Resolution: 0.1mA (AC), 1mA (DC)
Basic Accuracy: ACV: ±1.2% of rdg;/DCV: ±0.8% of rdg Basic ACA Accuracy (% rdg): AC: ±2.0%, DC: ±2.0%
Non-Contact Voltage (NCV): 100 to 1000V AC Voltage (Max Res.): 6V, 60V, 600V (1mV)
Resistance (Max Res.): 60M (0.1 ) DC Voltage (Max Res.): 600mV, 6V, 60V, 600V (0.1mV)
Capacitance (Max Res.): 60mF (0.01nF) Resistance (Max Res.): 600 , 6k , 60k , 600k , 6M , 60M (0.1 )
Frequency (Max Res.): 10Hz to 1MHz (0.01Hz) Capacitance (Max Res.): 6.2nF, 620 F, 62mF (1pF)
Temperature (Max Res.): -40 to 1000°C (1°C) Frequency (Max Res.): 10Hz to 60kHz (0.001Hz)
