REMOTE CONTROLS AND INTERFACES REMOTE CONTROLS AND INTERFACES
TFT Touchscreen EclerNet Control EclerNet Dante Paging Station
WPNETTOUCH PAGENETDN

APPLICATIONS APPLICATIONS

WPNETTOUCH

PAGENETDN

WPNETTOUCH

VESA 75 mounting system (included)

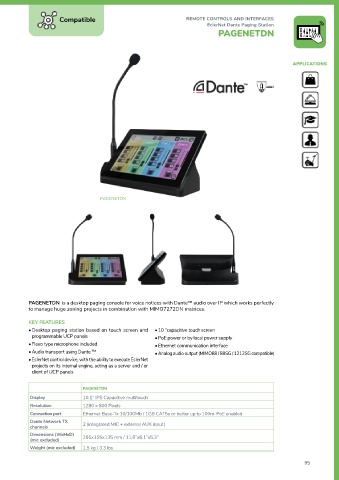

PAGENETDN is a desktop paging console for voice notices with Dante™ audio over IP which works perfectly
to manage huge zoning projects in combination with MIMO7272DN matrices.
WPNETTOUCH is a remote control TFT touchscreen compatible with all EclerNet products. Incorporates a
capacitive 10” touch screen, a server client and UCP server (User Control Panel). Each unit could be configured KEY FEATURES
to work as a single zone control panel or as a global multi-zone controller. It allows executing User Control
Panels that are able to control volume, sound source selection, presets recovery, communication via TCP/UDP • Desktop paging station based on touch screen and • 10 "capacitive touch screen
with external devices, etc. programmable UCP panels • PoE power or by local power supply
• Flexo type microphone included • Ethernet communication interface
KEY FEATURES • Audio transport using Dante ™ • Analog audio output (MIMO88 / 88SG / 1212SG compatible)
• EclerNet control device, with the ability to execute EclerNet • PoE power or local power supply • EclerNet control device, with the ability to execute EclerNet
projects on its internal engine, acting as a server and / or • Ethernet communication interface projects on its internal engine, acting as a server and / or
client of UCP panels • VESA75 and desktop mounting systems included client of UCP panels
• 10 "capacitive touch screen •
• PAGENETDN

WPNETTOUCH Display 10.1” IPS Capacitive multitouch
Display 10.1” IPS Capacitive multitouch Resolution 1280 x 800 Pixels
Resolution 1280 x 800 Pixels Connection port Ethernet Base-Tx 10/100Mb / 1GB CAT5e or better up to 100m. PoE enabled
Connection port Ethernet Base-Tx 10/100Mb / 1GB CAT5e or better up to 100m. PoE enabled Dante Network TX 2 (integrated MIC + external AUX input)
channels
Power Supply 12V (local PSU) Dimensions (WxHxD)
Dimensions (WxHxD) 260x178x28mm / 10.23”x7”x1.10” (mic excluded) 295x155x135 mm / 11.6”x6.1”x5.3”
Weight 700gr / 1.54 lb Weight (mic excluded) 1.5 kg / 3.3 lbs
