REMOTE CONTROLS AND INTERFACES REMOTE CONTROLS AND INTERFACES

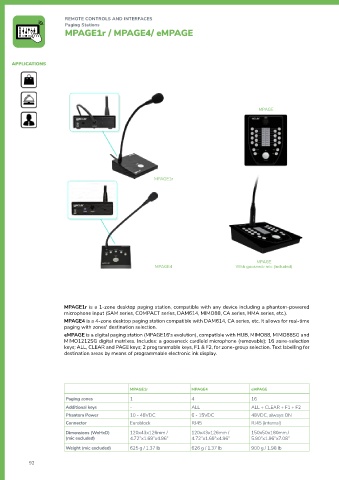

Paging Stations Remote Control
MPAGE1r / MPAGE4/ eMPAGE eMCONTROL1

APPLICATIONS APPLICATIONS

eMCONTROL1
MPAGE

eMCONTROL1
With surface-mount installation box (included)

MPAGE1r

Different mounting options available:
fully compatible with single/double, WPaMIX-T + eMCONTROL1 + WPa2FMBOX
surface/flush WPa series mount boxes

MPAGE eMCTROL1US (with USA frame)
MPAGE4 With goosneck mic (included)

MPAGE1r is a 1-zone desktop paging station, compatible with any device including a phantom-powered eMCONTROL1 is a digital control panel for the HUB series zoner with a wall format. It also makes it possible,
microphone input (SAM series, COMPACT series, DAM614, MIMO88, CA series, HMA series, etc.). as an option, to be coupled to a WPa type panel with an audio connector: the pair behaves like a single
MPAGE4 is a 4-zone desktop paging station compatible with DAM614, CA series, etc. It allows for real-time panel providing remote control + direct sending to the HUB from a balanced audio signal. To do so, it uses a
paging with zones' destination selection. single CAT5 type cable or higher. With exceptions, this does not require its own power supply: remote power
eMPAGE is a digital paging station (MPAGE16's evolution), compatible with HUB, MIMO88, MIMO88SG and supply from a REMOTE port on the HUB.
MIMO1212SG digital matrixes. Includes: a gooseneck cardioid microphone (removable); 16 zone-selection
keys; ALL, CLEAR and PAGE keys; 2 programmable keys, F1 & F2, for zone-group selection. Text labelling for KEY FEATURES ACCESSORIES
destination areas by means of programmable electronic ink display. • Digital control panel compatible with the HUB • Compatible with wall installation boxes with round shape
• Volume adjustment, selection of sources and (programable) and internal diameter ≥ 60 mm.
EQ • Aesthetics designed in collaboration with Italdesign Giugiaro
• Compatible with WPa series panels with audio connector, WPa Series
for sending audio and control signals via a single CAT5
cable or higher
MPAGE1r MPAGE4 eMPAGE
•
Paging zones 1 4 16 eMCONTROL1 eMCTROL1US
Additional keys - ALL ALL + CLEAR + F1 + F2 Display LCD LCD
Phantom Power 10 - 48VDC 6 - 15VDC 48VDC, always ON Resolution 128x128 Pixels 128x128 Pixels WPa2SMBOX
Connector Euroblock RJ45 RJ45 (internal) Connection port RJ45 remote port RJ45 remote port
Dimensions (WxHxD) 120x43x126mm / 120x43x126mm / 150x50x180mm / Control keys Encoder, SELECTION key Encoder, SELECTION key
(mic excluded) 4.72”x1.69”x4.96” 4.72”x1.69”x4.96” 5.90”x1.96”x7.08” Dimensions (WxHxD) 86x86x45mm / 3.38”x3.38”x1.77” 116,5 x 114,75 x 28 mm / 4.58” x 4.51” x 1.10”

Weight (mic excluded) 625 g / 1.37 lb 626 g / 1.37 lb 900 g / 1.98 lb Weight 150 g / 0.33 lb 150 g / 0.33 lb WPa2FMBOX

92 93
