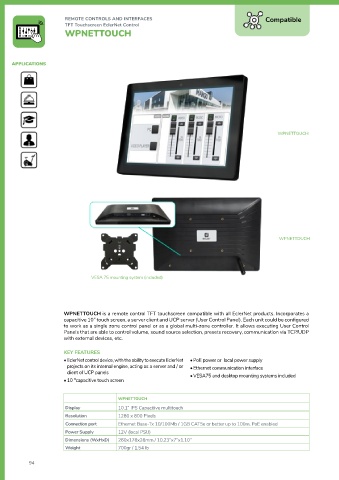

Page 94 - Midwich_ AU_Ecler_Audio_Product_Guide_2021

REMOTE CONTROLS AND INTERFACES REMOTE CONTROLS AND INTERFACES
TFT Touchscreen EclerNet Control EclerNet Dante Paging Station
WPNETTOUCH PAGENETDN

APPLICATIONS APPLICATIONS

WPNETTOUCH

PAGENETDN

WPNETTOUCH

VESA 75 mounting system (included)

PAGENETDN is a desktop paging console for voice notices with Dante™ audio over IP which works perfectly
to manage huge zoning projects in combination with MIMO7272DN matrices.
WPNETTOUCH is a remote control TFT touchscreen compatible with all EclerNet products. Incorporates a
capacitive 10” touch screen, a server client and UCP server (User Control Panel). Each unit could be configured KEY FEATURES
to work as a single zone control panel or as a global multi-zone controller. It allows executing User Control
Panels that are able to control volume, sound source selection, presets recovery, communication via TCP/UDP • Desktop paging station based on touch screen and • 10 "capacitive touch screen
with external devices, etc. programmable UCP panels • PoE power or by local power supply
• Flexo type microphone included • Ethernet communication interface
KEY FEATURES • Audio transport using Dante ™ • Analog audio output (MIMO88 / 88SG / 1212SG compatible)
• EclerNet control device, with the ability to execute EclerNet • PoE power or local power supply • EclerNet control device, with the ability to execute EclerNet
projects on its internal engine, acting as a server and / or • Ethernet communication interface projects on its internal engine, acting as a server and / or
client of UCP panels • VESA75 and desktop mounting systems included client of UCP panels
• 10 "capacitive touch screen •
• PAGENETDN

WPNETTOUCH Display 10.1” IPS Capacitive multitouch
Display 10.1” IPS Capacitive multitouch Resolution 1280 x 800 Pixels
Resolution 1280 x 800 Pixels Connection port Ethernet Base-Tx 10/100Mb / 1GB CAT5e or better up to 100m. PoE enabled
Connection port Ethernet Base-Tx 10/100Mb / 1GB CAT5e or better up to 100m. PoE enabled Dante Network TX 2 (integrated MIC + external AUX input)
channels
Power Supply 12V (local PSU) Dimensions (WxHxD)
Dimensions (WxHxD) 260x178x28mm / 10.23”x7”x1.10” (mic excluded) 295x155x135 mm / 11.6”x6.1”x5.3”
Weight 700gr / 1.54 lb Weight (mic excluded) 1.5 kg / 3.3 lbs

94 95
