REMOTE CONTROLS AND INTERFACES REMOTE CONTROLS AND INTERFACES

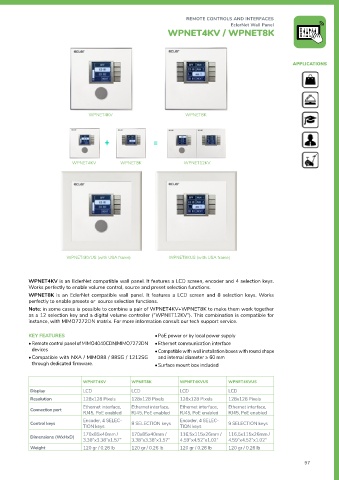

Dante™ Wall Interface / EclerNet Wall Panel EclerNet Wall Panel
WP22DN / WPNETEX WPNET4KV / WPNET8K

APPLICATIONS APPLICATIONS

WPNET4KV WPNET8K

WPNET4KV WPNET8K WPNET12KV

WP22DN WPNETX

WP22DN is a Dante™ interface in a wall panel format. It features 2 audio MIC/LINE Combo connector inputs
in its frontal panel and 2 Dante™ conversion channels either directly or by the sum of channels (stereo to
mono conversion). Also, it features 2 analogue outputs with duplicated connectors in XLR format for the front
panel and Euroblock on the rear panel, both linked to 2 Dante™ channels coming from the local network.
WPNETEX is an EclerNet compatible wall panel, featuring an LCD screen, a digital rotary encoder and WPNET4KVUS (with USA frame) WPNET8KUS (with USA frame)
4 control keys. Its end-user control features are volume control, source and preset selection and 3 band
EQ functions.
KEY FEATURES WPNETEX: WPNET4KV is an EclerNet compatible wall panel. It features a LCD screen, encoder and 4 selection keys.
Works perfectly to enable volume control, source and preset selection functions.
WP22DN: • Remote control panel of Dante™ digital matrixes WPNET8K is an EclerNet compatible wall panel. It features a LCD screen and 8 selection keys. Works
• Dante ™ interface wall panel (MIMO4040CDN/MIMO7272DN) perfectly to enable presets or source selection functions.
• PoE power or by local power supply • Programmable, ready to admit extended control functions Note: in some cases is possible to combine a pair of WPNET4KV+WPNET8K to make them work together
• Ecler Double gang surface mount box included • PoE power or by local power supply as a 12 selection key and a digital volume controller (“WPNET12KV”). This combination is compatible for
• • Ethernet communication interface instance, with MIMO7272DN matrix. For more information consult our tech support service.
• • Compatible with wall installation boxes with round shape
• and internal diameter ≥ 60 mm. KEY FEATURES • PoE power or by local power supply
• • Surface mount box included • Remote control panel of MIMO4040CDN/MIMO7272DN • Ethernet communication interface
devices • Compatible with wall installation boxes with round shape
WP22DN WPNETEX • Compatible with NXA / MIMO88 / 88SG / 1212SG and internal diameter ≥ 60 mm
through dedicated firmware. • Surface mount box included
2 analog, balanced, MIC/LINE
Inputs Display LCD
level
Outputs 2 analog, balanced, line level Resolution 128x128 Pixels WPNET4KV WPNET8K WPNET4KVUS WPNET4KVUS
Display LCD LCD LCD LCD
Dante 2x2 interface, RJ45,
PoE ready Resolution 128x128 Pixels 128x128 Pixels 128x128 Pixels 128x128 Pixels
Connectors Audio In: 2x Combo / Audio Connection port Ethernet interface, RJ45, PoE Ethernet interface, Ethernet interface, Ethernet interface, Ethernet interface,
enabled
Out: 2x XLR M (external) 2x Connection port RJ45, PoE enabled RJ45, PoE enabled RJ45, PoE enabled RJ45, PoE enabled
Euroblock (internal) Encoder, 4 SELEC- Encoder, 4 SELEC-
Phantom Power +48VDC, 5mA max. Control keys Encoder, 4 SELECTION keys Control keys TION keys 8 SELECTION keys TION keys 9 SELECTION keys
170x85x40mm / 170x85x40mm / 170x85x40mm / 170x85x40mm / 116,5x115x26mm / 116,5x115x26mm /
Dimensions (WxHxD) Dimensions (WxHxD) Dimensions (WxHxD)
3.38”x3.38”x1.57” 3.38”x3.38”x1.57” 3.38”x3.38”x1.57” 3.38”x3.38”x1.57” 4.59”x4.52”x1.02” 4.59”x4.52”x1.02”
Weight 400gr / 0.88 lb Weight 120 gr / 0.26 lb Weight 120 gr / 0.26 lb 120 gr / 0.26 lb 120 gr / 0.26 lb 120 gr / 0.26 lb
