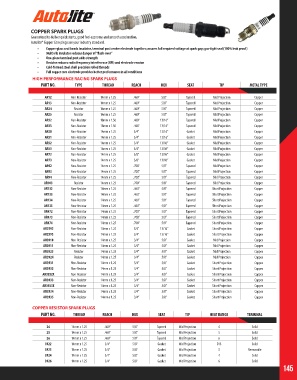

Page 145 - 2018 Master Catalog

COPPER SPARK PLUGS
Guaranteed to deliver quick starts, good fuel economy and smooth acceleration.
Autolite® Copper Core plugs are your industry standard.
• Copper-glass seal bonds insulator, terminal post center electrode together; assures full required voltage at spark gap; gas-tight seal (100% leak proof)
• Multi-rib insulator reduces danger of “flash-over”
• One-piece terminal post adds strength
• Resistor reduces radio frequency interference (RFI) and electrode erosion
• Cold-formed steel shell precision rolled threads
• Full copper core electrode provides better performance in all conditions
HIGH PERFORMANCE RACING SPARK PLUGS
PART NO. TYPE THREAD REACH HEX SEAT TIP METAL TYPE

AR12 Non-Resistor 14mm x 1.25 .460” 5/8” Tapered Mid Projection Copper
AR13 Non-Resistor 14mm x 1.25 .460” 5/8” Tapered Mid Projection Copper
AR24 Resistor 14mm x 1.25 .460” 5/8” Tapered Mid Projection Copper
AR25 Resistor 14mm x 1.25 .460” 5/8” Tapered Mid Projection Copper
AR32 Non-Resistor 18mm x 1.50 .468” 13/16” Tapered Mid Projection Copper
AR33 Non-Resistor 18mm x 1.50 .468” 13/16” Tapered Mid Projection Copper
AR50 Non-Resistor 14mm x 1.25 3/4” 13/16” Gasket Mid Projection Copper
AR51 Non-Resistor 14mm x 1.25 3/4” 13/16” Gasket Mid Projection Copper
AR52 Non-Resistor 14mm x 1.25 3/4” 13/16” Gasket Mid Projection Copper
AR53 Non-Resistor 14mm x 1.25 3/4” 13/16” Gasket Mid Projection Copper
AR72 Non-Resistor 14mm x 1.25 3/8” 13/16” Gasket Mid Projection Copper
AR73 Non-Resistor 14mm x 1.25 3/8” 13/16” Gasket Mid Projection Copper
AR92 Non-Resistor 14mm x 1.25 .708” 5/8” Tapered Mid Projection Copper
AR93 Non-Resistor 14mm x 1.25 .708” 5/8” Tapered Mid Projection Copper
AR94 Non-Resistor 14mm x 1.25 .708” 5/8” Tapered Mid Projection Copper
AR103 Resistor 14mm x 1.25 .708” 5/8” Tapered Mid Projection Copper
AR132 Non-Resistor 14mm x 1.25 .460” 5/8” Tapered Short Projection Copper
AR133 Non-Resistor 14mm x 1.25 .460” 5/8” Tapered Short Projection Copper
AR134 Non-Resistor 14mm x 1.25 .460” 5/8” Tapered Short Projection Copper
AR135 Non-Resistor 14mm x 1.25 .460” 5/8” Tapered Short Projection Copper
AR472 Non-Resistor 14mm x 1.25 .708” 5/8” Tapered Short Projection Copper
AR473 Non-Resistor 14mm x 1.25 .708” 5/8” Tapered Short Projection Copper
AR474 Non-Resistor 14mm x 1.25 .708” 5/8” Tapered Short Projection Copper
AR2592 Non-Resistor 14mm x 1.25 3/4” 13/16” Gasket Short Projection Copper
AR2593 Non-Resistor 14mm x 1.25 3/4” 13/16” Gasket Short Projection Copper
AR3910 Non-Resistor 14mm x 1.25 3/4” 5/8” Gasket Mid Projection Copper
AR3911 Non-Resistor 14mm x 1.25 3/4” 5/8” Gasket Mid Projection Copper
AR3923 Resistor 14mm x 1.25 3/4” 5/8” Gasket Mid Projection Copper
AR3924 Resistor 14mm x 1.25 3/4” 5/8” Gasket Mid Projection Copper
AR3931 Non-Resistor 14mm x 1.25 3/4” 5/8” Gasket Short Projection Copper
AR3932 Non-Resistor 14mm x 1.25 3/4” 5/8” Gasket Short Projection Copper
AR3932X Non-Resistor 14mm x 1.25 3/4” 5/8” Gasket Short Projection Copper
AR3933 Non-Resistor 14mm x 1.25 3/4” 5/8” Gasket Short Projection Copper
AR3933X Non-Resistor 14mm x 1.25 3/4” 5/8” Gasket Short Projection Copper
AR3934 Non-Resistor 14mm x 1.25 3/4” 5/8” Gasket Short Projection Copper
AR3935 Non-Resistor 14mm x 1.25 3/4” 5/8” Gasket Short Projection Copper
COPPER RESISTOR SPARK PLUGS
PART NO. THREAD REACH HEX SEAT TIP HEAT RANGE TERMINAL

24 14mm x 1.25 .460” 5/8” Tapered Mid Projection 4 Solid
25 14mm x 1.25 .460” 5/8” Tapered Mid Projection 5 Solid
26 14mm x 1.25 .460” 5/8” Tapered Mid Projection 6 Solid
3922 14mm x 1.25 3/4” 5/8” Gasket Mid Projection D13 Solid
3923 14mm x 1.25 3/4” 5/8” Gasket Mid Projection 3 Removable
3924 14mm x 1.25 3/4” 5/8” Gasket Mid Projection 4 Solid
3926 14mm x 1.25 3/4” 5/8” Gasket Mid Projection 6 Solid
145
