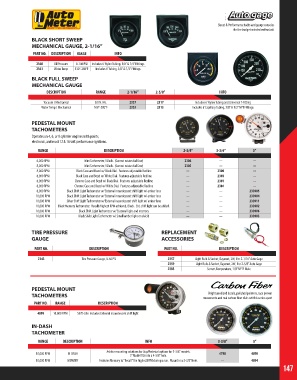

Page 147 - 2018 Master Catalog

Street & Performance tachs and gauge consoles
for the budget minded enthusiast.
BLACK SHORT SWEEP
MECHANICAL GAUGE, 2-1/16”
PART NO. DESCRIPTION RANGE INFO

2360 Oil Pressure 0-100 PSI Includes 6’ Nylon Tubing, 1/8” & 1/4” Fittings
2361 Water Temp 130°-280°F Includes 6’ Tubing, 3/8” & 1/2” Fittings
BLACK FULL SWEEP
MECHANICAL GAUGE
DESCRIPTION RANGE 2-1/16” 2-5/8” INFO

Vacuum / Mechanical 30 IN. HG. 2337 2317 Includes 6’ Nylon Tubing and Universal T-Fitting
Water Temp / Mechanical 100°-280°F 2333 2313 Includes 6’ Capillary Tubing, 3/8” & 1/2” NPT Fittings

PEDESTAL MOUNT
TACHOMETERS
Operates on 4, 6, or 8 cylinder engines with points,
electronic, and most 12 & 16 volt performance ignitions.
RANGE DESCRIPTION 2-3/4” 3-3/4” 5”

6,000 RPM Mini Tachometer / Black. (Cannot rotate dial face) 2306 --- ---
8,000 RPM Mini Tachometer / Black. (Cannot rotate dial face) 2305 --- ---
8,000 RPM Black Case and Bezel w/ Black Dial. Features adjustable Redline --- 2300 ---
8,000 RPM Black Case and Bezel w/ White Dial. Features adjustable Redline --- 2303 ---
8,000 RPM Chrome Case and Bezel w/ Black Dial. Features adjustable Redline --- 2301 ---
8,000 RPM Chrome Case and Bezel w/ White Dial. Features adjustable Redline --- 2304 ---
8,000 RPM Black Shift Light Tachometer w/ External incandescent shift light w/ amber lens --- --- 233905
10,000 RPM Black Shift Light Tachometer w/ External incandescent shift light w/ amber lens --- --- 233904
10,000 RPM Silver Shift Light Tachometer w/ External incandescent shift light w/ amber lens --- --- 233911
10,000 RPM Black Memory Tachometer. Recalls highest RPM achieved, Black. Ext. shift light can be added. --- --- 233902
10,000 RPM Black Shift Light Tachometer w/ External light and memory --- --- 233906
10,000 RPM Black Shift Light Tachometer w/ Small amber light on shield --- --- 233903

TIRE PRESSURE REPLACEMENT
GAUGE ACCESSORIES
PART NO. DESCRIPTION PART NO. DESCRIPTION

2343 Tire Pressure Gauge, 0-60 PSI 2357 Light Bulb & Socket, Bayonet, 2W, For 2-1/16” Auto Gage
2359 Light Bulb & Socket, Bayonet, 2W, For 2-5/8” Auto Gage
2385 Sensor, Temperature, 1/8” NPTF Male

PEDESTAL MOUNT
TACHOMETERS Bright anodized bezels, polished pointers, race proven
movements and real carbon fiber dials set this series apart
PART NO. RANGE DESCRIPTION

4899 10,000 RPM Shift-Lite: Includes External incandescent shift light

IN-DASH
TACHOMETER
RANGE DESCRIPTION INFO 3-3/8” 5”

10,000 RPM IN-DASH Ask for mounting solutions for Cup/Pedestal options for 3-3/8” models. 4798 4898
5” Model fits into a 4-5/8” hole.
10,000 RPM MEMORY Features Memory to “Recall” the highest RPM during a run. Mount in a 3-3/8” hole. --- 4894
147
