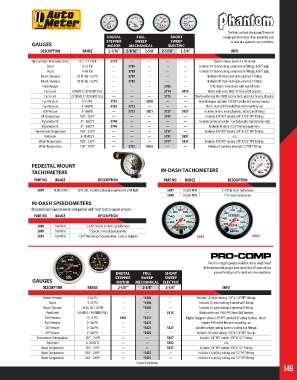

Page 149 - 2018 Master Catalog

The high contrast design and florescent
DIGITAL FULL SHORT orange pointer makes them incredibly easy
SWEEP
SWEEP
GAUGES STEPPER MECHANICAL ELECTRIC to read at a glance in any conditions.
MOTOR
DESCRIPTION RANGE 2-1/16” 2-1/16” 2-5/8” 2-1/16” 2-5/8” INFO
Air Fuel Ratio-Wideband Street 10.1 - 17.1 AFR 5779 --- --- --- --- Street includes Bosch 4.2 O2 sensor
Boost 0-35 PSI --- 5704 --- --- --- Includes 10’ nylon tubing, compression fittings, & NPT adpr.
Boost 0-60 PSI --- 5705 --- --- --- Includes 10’ nylon tubing, compression fittings, & NPT adpr.
Boost / Vacuum 30 IN. HG / 20 PSI --- 5701 --- --- --- Includes 10’ nylon tubing & universal T-fitting
Boost / Vacuum 30 IN. HG / 30 PSI --- 5703 --- --- --- Includes 10’ nylon tubing & universal T-fitting
Clock-Anaglo --- --- --- --- 5785 --- 12 hr, Quartz movement with second hand
Fuel Level 0 OHMS E / 90 OHMS FULL --- --- --- 5714 5814 Works with most 1965-97 Chevy/GM Senders
Fuel Level 73 OHMS E / 10 OHMS FULL --- --- --- 5715 --- Works with most Pre-1989 factory Ford, and most factory Chrysler
Fuel Pressure 0-15 PSI 5761 --- 5810 --- --- Digital Stepper includes 1/8” NPT sender & 8’ wiring harness.
Fuel Pressure 0-100 PSI 5763 5712 --- --- --- Mech. require #4 braided line and mounting cup
Oil Pressure 0-100 PSI --- 5721 5821 5727 5827 Includes sender, wiring harness, tubing and fittings
Oil Temperature 100° - 250°F --- --- --- 5747 --- Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Pyrometer Kit 0° - 1600°F 5744 --- --- --- --- Includes universal sender - For Automatic transmission only
Pyrometer Kit 0° - 2000°F 5745 --- --- --- --- Includes Probe & 10’ of Thermocouple wire
Transmission Temperature 100° - 250°F --- --- --- 5757 --- Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Voltmeter 8-18 VOLTS --- --- --- 5791 5891 n/a
Water Temperature 100° - 250°F --- --- --- 5737 5837 Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Water Temperature 120° - 240°F --- 5732 5832 --- --- Includes 6’ capillary tubing & 1/2” NPT fitting

PEDESTAL MOUNT
TACHOMETERS IN-DASH TACHOMETERS
PART NO. RANGE DESCRIPTION PART NO. RANGE DESCRIPTION
5899 10,000 RPM Shift-Lite: Includes External incandescent shift light 5897 10,000 RPM 3-3/8” In-Dash Tachometer
5898 10,000 RPM 5” In-Dash Tachometer
IN-DASH SPEEDOMETERS
Programmable Speedometers compatible with most factory speed sensors.
PART NO. RANGE DESCRIPTION

5888 160 MPH 3-3/8” Electric In-Dash Speedometer
5889 160 MPH 5” Electric In-Dash Speedometer
5893 160 MPH 3-3/8” Mechanical Speedometer. Cable is required 5888 5893

The most rugged gauges available, these tough liquid
filled mechanical gauges have more than 20 years of race
DIGITAL FULL SHORT proven heritage in the most extreme conditions.
SWEEP
SWEEP
GAUGES STEPPER MECHANICAL ELECTRIC
MOTOR
DESCRIPTION RANGE 2-5/8”” 2-5/8” 2-5/8” INFO
Blower Pressure 0-60 PSI --- *5402 --- Includes 10’ nylon tubing, 1/8” & 1/4” NPT fittings
Boost 0-35 PSI --- *5404 --- Includes 10’ nylon tubing & universal T-fitting
Boost / Vacuum 30 IN. HG / 20 PSI --- *5401 --- Includes 10’ nylon tubing & universal T-fitting
Fuel Level 0 OHMS E / 90 OHMS FULL --- --- 5415 Works with most 1965-97 Chevy/GM Senders
Fuel Pressure 0-15 PSI 5461 *5411 --- Digital Stepper includes 1/8” NPT sender & 8’ wiring harness. Mech.
Fuel Pressure 0-100 PSI --- *5412 --- require #4 braided line and mounting cup
Oil Pressure 0-100 PSI --- *5421 5427 Includes sender, wiring harness, tubing and fittings
Oil Pressure 0-200 PSI --- *5422 --- Includes 10’ nylon tubing, 1/8” & 1/4” NPT fittings
Transmission Temperature 100° - 250°F --- --- 5457 Includes 1/8” NPT sender, 3/8” & 1/2” fittings
Voltmeter 8-18 VOLTS --- --- 5492 n/a
Water Temperature 100° - 250°F --- --- 5437 Includes 1/8” NPT sender, 3/8” & 1/2” fittings
Water Temperature 120° - 240°F --- *5432 --- Includes 6’ capillary tubing and 1/2” NPT fitting
Water Temperature 140° - 280°F --- *5431 --- Includes 6’ capillary tubing and 1/2” NPT fitting
*Liquid Filled Models
149
