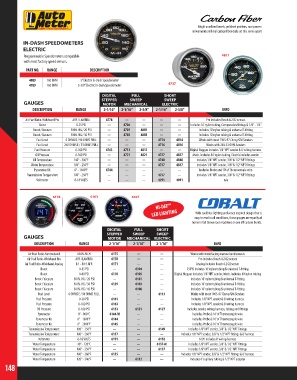

Page 148 - 2018 Master Catalog

Bright anodized bezels, polished pointers, race proven
movements and real carbon fiber dials set this series apart

IN-DASH SPEEDOMETERS
ELECTRIC
Programmable Speedometers compatible 4821
with most factory speed sensors.
PART NO. RANGE DESCRIPTION

4889 160 MPH 5” Electric In-Dash Speedometer
4789 160 MPH 3-3/8” Electric In-Dash Speedometer 4737

DIGITAL FULL SHORT
STEPPER SWEEP SWEEP
GAUGES MOTOR MECHANICAL ELECTRIC
DESCRIPTION RANGE 2-1/16” 2-1/16” 2-5/8” 2-1/16” 2-5/8” INFO
Air Fuel Ratio-Wideband Pro AFR / LAMBDA 4778 --- --- --- --- Pro Includes Bosch 4.2 O2 sensor.
Boost 0-35 PSI --- 4704 --- --- --- Includes 10’ nylon tubing, Compression fittings & 1/8” - 1/4”
Boost / Vacuum 30 IN. HG / 20 PSI --- 4701 4801 --- --- Includes 10’ nylon tubing & universal T-fitting
Boost / Vacuum 30 IN. HG / 30 PSI --- 4703 4803 --- --- Includes 10’ nylon tubing & universal T-fitting
Fuel Level 0 OHMS E / 90 OHMS FULL --- --- --- 4714 4814 Works with most 1965-97 Chevy/GM Senders
Fuel Level 240 OHMS E / 33 OHMS FULL --- --- --- 4716 4816 Works with 240-33 OHM Senders
Fuel Pressure 0-100 PSI 4763 4712 4812 --- --- Digital Stepper includes 1/8” NPT sender & 8’ wiring harness
Oil Pressure 0-100 PSI --- 4721 4821 4727 4827 Mech. includes 10’ nylon tubing, Electric includes sender
Oil Temperature 140° - 300°F --- --- --- 4748 4848 Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Water Temperature 100° - 250°F --- --- --- 4737 4837 Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Pyrometer Kit 0° - 1600°F 4744 --- --- --- --- Includes Probe and 10’ of Thermocouple wire
Transmission Temperature 100° - 250°F --- --- --- 4757 --- Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Voltmeter 8-18 VOLTS --- --- --- 4791 4891 n/a

6178 6163 6107
HI-DEF™
LED LIGHTING With cool blue lighting and a race inspired design that is
easy to read in all conditions, these gauges are equally at
home in full blown race machines or one off custom builds.
DIGITAL FULL SHORT
SWEEP
SWEEP
GAUGES STEPPER MECHANICAL ELECTRIC
MOTOR
DESCRIPTION RANGE 2-1/16” 2-1/16” 2-1/16” INFO
Air Fuel Ratio-Narrowband LEAN-RICH 6175 --- --- Works with most factory narrow band sensors
Air Fuel Ratio-Wideband Pro AFR / LAMBDA 6178 --- --- Pro includes Bosch 4.2 O2 sensor
Air Fuel Ratio-Wideband Analog 8:1 - 18:1 AFR 6171 --- --- Analog includes Bosch 4.2 O2 sensor
Boost 0-35 PSI --- 6104 --- 35 PSI includes 10’ nylon tubing & universal T-fitting
Boost 0-60 PSI 6170 6105 --- Digital Stepper includes 1/8” NPT sender, Mech. includes 10’ nylon tubing
Boost / Vacuum 30 IN. HG / 20 PSI --- 6107 --- Includes 10’ nylon tubing & universal T-fitting
Boost / Vacuum 30 IN. HG / 30 PSI 6159 6103 --- Includes 10’ nylon tubing & universal T-fitting
Boost / Vacuum 30 IN. HG / 45 PSI --- 6108 --- Includes 10’ nylon tubing & universal T-fitting
Fuel Level 0 OHMS E / 90 OHMS FULL --- --- 6113 Works with most 1965-97 Chevy/GM Senders
Fuel Pressure 0-30 PSI 6161 --- --- Includes 1/8” NPT sender & 8’ wiring harness
Fuel Pressure 0-100 PSI 6163 --- --- Includes 1/8” NPT sender & 8’ wiring harness
Oil Pressure 0-100 PSI 6153 6121 6127 Includes sender, wiring harness, tubing and fittings
Pyrometer 0° - 900°C 6144-M --- --- Includes Probe & 10’ of Thermocouple wire
Pyrometer Kit 0° - 1600°F 6144 --- --- Includes Probe & 10’ of Thermocouple wire
Pyrometer Kit 0° - 2000°F 6145 --- --- Includes Probe & 10’ of Thermocouple wire
Transmission Temperature 100° - 250°F --- --- 6149 Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Transmission Temperature 100° - 260°F 6157 --- --- Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings & 8’ harness
Voltmeter 8-18 VOLTS 6191 --- 6192 6191 Includes 8’ wiring harness
Water Temperature 40° - 120°C --- --- 6137-M Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Water Temperature 100° - 250°F --- --- 6137 Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Water Temperature 100° - 260°F 6155 --- --- Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings & 8’ harness
Water Temperature 120° - 240°F --- 6132 --- Includes 6’ capillary tubing & 1/2” NPT adapter
