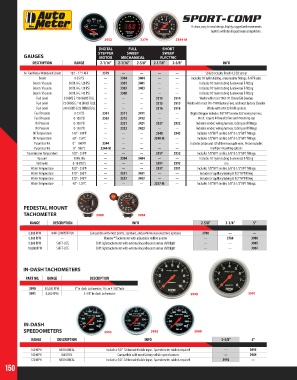

Page 150 - 2018 Master Catalog

A clean, easy to read design, highly ruggedized movements
built to withstand sportsman competition.

3552 3379 3344-M
DIGITAL FULL SHORT
STEPPER SWEEP SWEEP
GAUGES MOTOR MECHANICAL ELECTRIC
DESCRIPTION RANGE 2-1/16” 2-1/16” 2-5/8” 2-1/16” 2-5/8” INFO
Air Fuel Ratio-Wideband Street 10:1 - 17:1 AFR 3379 --- --- --- --- Street includes Bosch 4.2 O2 sensor
Boost 0-35 PSI --- 3304 3404 --- --- Includes 10’ nylon tubing, compression fittings, & NPT adpr.
Boost / Vacuum 30 IN. HG / 20 PSI --- 3301 3401 --- --- Includes 10’ nylon tubing & universal T-fitting
Boost / Vacuum 30 IN. HG / 30 PSI --- 3303 3403 --- --- Includes 10’ nylon tubing & universal T-fitting
Boost / Vacuum 30 IN. HG / 45 PSI --- 3308 --- --- --- Includes 10’ nylon tubing & universal T-fitting
Fuel Level 0 OHMS E / 90 OHMS FULL --- --- --- 3314 3514 Works with most 1965-97 Chevy/GM Senders
Fuel Level 73 OHMS E / 10 OHMS FULL --- --- --- 3315 3515 Works with most Pre-1989 factory Ford, and most factory Chrysler
Fuel Level 240 OHMS E/33 OHMS FULL --- --- --- 3316 3516 Works with 240-33 OHM senders
Fuel Pressure 0-15 PSI 3361 3311 3411 --- --- Digital Stepper includes 1/8” NPT sender & 8’ wiring harness.
Fuel Pressure 0-100 PSI 3363 3312 3412 --- --- Mech. require #4 braided line and mounting cup
Oil Pressure 0-100 PSI --- 3321 3421 3327 3522 Includes sender, wiring harness, tubing and fittings
Oil Pressure 0-150 PSI --- 3323 3423 --- --- Includes sender, wiring harness, tubing and fittings
Oil Temperature 140° - 300°F --- --- --- 3348 3543 Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Oil Temperature 60° - 150°C --- --- --- 3348-M --- Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Pyrometer Kit 0° - 1600°F 3344 --- --- --- --- Includes probe and 10’ of thermocouple wire. Probe includes
Pyrometer Kit 0° - 900°C 3344-M --- --- --- --- multiple mounting options
Transmission Temperature 100° - 250°F --- --- --- 3357 3552 Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Vacuum 30 IN. HG --- 3384 3484 --- --- Includes 10’ nylon tubing & universal T-fitting
Voltmeter 8-18 VOLTS --- --- --- 3391 3592 n/a
Water Temperature 100° - 250°F --- --- --- 3337 3531 Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Water Temperature 140° - 280°F --- 3331 3431 --- --- Includes 6’ capillary tubing & 1/2” NPT fitting
Water Temperature 120° - 240°F --- 3332 3432 --- --- Includes 6’ capillary tubing & 1/2” NPT fitting
Water Temperature 40° - 120°C --- --- --- 3337-M --- Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings

PEDESTAL MOUNT
TACHOMETER 3980 3904

RANGE DESCRIPTION INFO 2-5/8” 3-3/4” 5”
8,000 RPM MINI COMPETITION Compatible with most points, standard, and performance electronic ignitions 3708 --- ---
8,000 RPM --- Monster™ Tachometer with adjustable redline pointer --- 3780 3980
8,000 RPM SHIFT-LITE Shift light tachometer with external incandescent amber shift light --- --- 3905
10,000 RPM SHIFT-LITE Shift light tachometer with external incandescent amber shift light --- --- 3904

IN-DASH TACHOMETERS

PART NO. RANGE DESCRIPTION

3990 10,000 RPM 5” In-dash tachometer, Fits in 4-5/8” hole
3991 8,000 RPM 3-3/8” In-dash tachometer 3990 3991

IN-DASH
SPEEDOMETERS 3995 3992 3989

RANGE DESCRIPTION INFO 3-3/8” 5”

160 MPH MECHANICAL Include a 5/8”-18 threaded cable input. Speedometer cable is required --- 3995
160 MPH ELECTRIC Compatible with most factory vehicle speed sensors --- 3989
120 MPH MECHANICAL Include a 5/8”-18 threaded cable input. Speedometer cable is required 3992 ---
150
